60HZ Cable Insulation Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | I-suntop |
| Certification: | SGS |
| Model Number: | I-50+35 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | By negotiation |
| Packaging Details: | Plastic film+wooden box |
| Delivery Time: | Min.30working days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Up to different machine |
|
Detail Information |
|||
| Application: | Insulation | Voltage: | 3phase 380V 50HZ/60HZ |
|---|---|---|---|
| Warranty: | 12month,longtime Maitenance | Wire Range: | Max.400 |
| Hs Code: | 84794000 | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Highlight: | 60HZ cable insulation machine,anti rust cable insulation machine,anti rust wire insulation machine |
||
Product Description

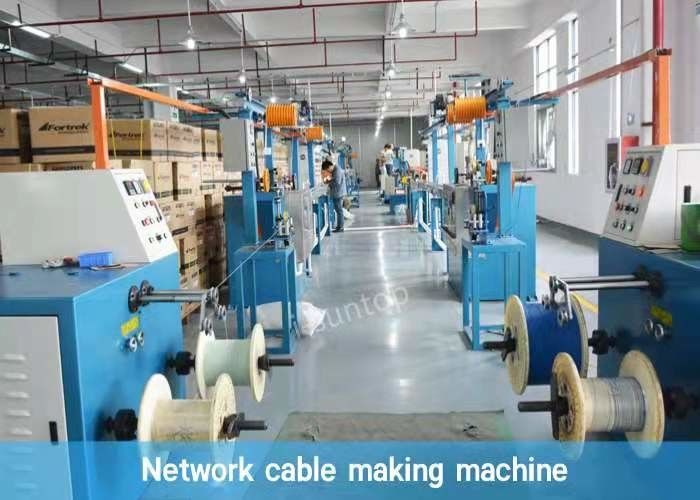

Cat5 CAT6 UTP Network LAN Wire Cable Insulation Making Machine
i-suntop Electric wire and cable equipments2022022...
1. Application for Cat5 CAT6 UTP Network LAN Wire Cable Insulation Making Machine :
Suitable for the extrusion of PVC,PE, and other plastic material,mainly applied in the insulation or sheath extrusion of car cable,net wire,power cable,data wire,high frequency wire,building wire,electric wire.etc.The changed screw is suitable for extrusion of low smoke halogen free,nylon and other plastic material.
2. Technical parameters for Cat5 CAT6 UTP Network LAN Wire Cable Insulation Making Machine :
| Machine type | GF-50+35 |
| Pay off type | motorized/double-shaft |
| Screw diameter | Φ35 and Φ50 |
| Screw L/D | 35mm:16:1,50mm:26:1 |
| Max.extrusion output | 35mm:30kg/h,50mm:90kg/h |
| Motor power | 50mm:11KW ,35mm:2.2KW |
| Wire diameter | Φ0.6~Φ4.0mm |
| Cooling device | Folding type W/U type |
| Haul-off power | 2.2KW |
| Wire-storage length | 180-250m |
| Max. Line speed | 450m/min |
| Take-up type | Double shaft bundle packaging/shaft packaging |
3. Main items for Cat5 CAT6 UTP Network LAN Wire Cable Insulation Making Machine :
| Item | qty. |
| single head Active pay-off | 1set |
| Vertical tension dancer | 1set |
| 50mm Main extruder | 1set |
| 35mm extruder for stripe extrusion | 1set |
| 1.5m pre-water cooling trough | 1set |
| Diameter gauge | 1set |
| Single layer main cooling trough | 1set |
| Dual wheel capstan | 1set |
| 9m horizontal type cable accumulator | 1set |
| 15KV high frequency spark tester | 1set |
| Meter counter | 1set |
| 400-630mm dual reel take up | 1set |
| Electrical control system (PLC control optional) | 1set |
| Powder device(optional) | 1set |
| Printer(optional) | 1set |
| Copper preheater | 1set |
Can be optional for PLC control,infuse color machine (for the production of double-color wire), etc. the concrete configuration can be adjustable according to client's requirement.
4.Production Process:
