High Speed 37kw Intermediate Wire Drawing Machine SGS Approved
Product Details:
| Place of Origin: | China |
| Brand Name: | I-suntop |
| Certification: | SGS |
| Model Number: | GF-17DT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | By negotiation |
| Packaging Details: | Plastic film+wooden box |
| Delivery Time: | Min.30working days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Up to different machine |
|
Detail Information |
|||
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Warranty: | One Year Warranty |
|---|---|---|---|
| Inlet Diameter: | Φ3.0~Φ2.6 | Voltage: | 380V |
| Condition: | New | Outlet Diameter: | Φ0.4~Φ1.2 |
| Color: | Clients' Requirements | Usage: | Used Wire Drawing Machine |
| Name: | DT21/8 Multiple Copper Wire Drawing Machine With Annealing | Drawing Material: | Copper |
| Drawing Speed: | 1200m/min | ||
| High Light: | 37kw intermediate wire drawing machine,SGS intermediate wire drawing machine,37kw high speed wire drawing machine |
||
Product Description

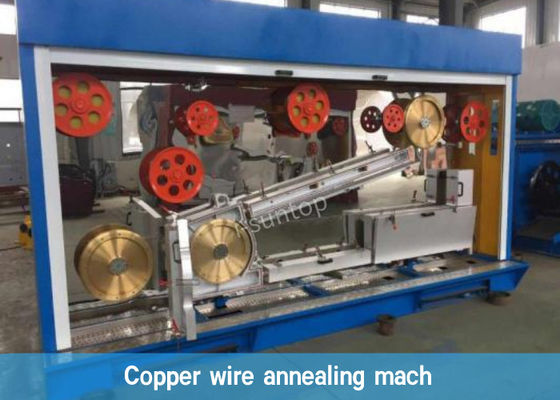

High speed Intermediate copper wire drawing machine with annealer
I-suntop copper wire drawing machine20220301.pdf
1. Application for Intermediate copper wire drawing machine with annealer:
The production line is applicable for 3.0-2.6mm copper wire, drawn out to 0.4-1.2mm wire. Along with annealer, the finished conductor wire with annealing process can be used for next process stranding or extrusion.
2. Specification for Intermediate copper wire drawing machine with annealer:
| Items | GF-17DT | GF-17DST | GF-17MDST | GF-HST |
| Control system | Traditional analog type/digital control with production record | |||
| Outlet diameter | Φ0.4~Φ1.2 | Φ0.4~Φ1.6 | Φ0.4~Φ1.2 | Φ0.4~Φ1.8 |
| Inlet diameter | Φ3.0~Φ2.6 | Φ3.5~Φ2.6 | Φ3.2~Φ2.6 | Φ3.5~Φ2.6 |
| Max line speed | 1200 | 2000 | 1500 | 1800 |
| Dies NO. | 17 | 17 | 17 | 17 |
| Slip ratio of m/c | 18%+12.5% | 20%+15% | 15%+10% | 19.5%+10% |
| Frame | Iron cast | Welded by steal plate | ||
| Capstan | Tungsten | |||
| Max capstan diameter | Φ260 | Φ250 | Φ254 | Φ280 |
| Fix speed capstan diameter | Φ260 | Φ250 | Φ252 | Φ280 |
| Spooler bobbin size | Φ400~Φ630 | |||
| Bobbin loading&unloading type | Double end thimble | |||
| Max loading capacity | 500KG/MAX | |||
| Transmission type | By chain | By precision ground gears | ||
| Traversing unit | 90KW strap speed-down motor type | |||
| Break | Magnetic brake/Disc brake | |||
| Revise system | PID synchronous control spooler | |||
| Detecting device | Weight balance by swing arm | |||
| Tension control | Air pressure adjust | |||
| Main motor | 37KW | 55KW | 37KW | 45KW |
| Spooler motor | 11KW | 11KW | 11KW | 11KW |
| Annealer method | Three-section annealing | |||
| Max anneal current | DC1200A | DC2000A | DC1500A | DC2000A |
| Max anneal voltage | DC50V | DC50V | DC50V | DC50V |
| Annealing motor power | 60KVA | 100KVA | 75KVA | 100KVA |
| Steam quantity | 12kg/h | 12kg/h | 12kg/h | 18kg/h |
| Cooling water capacity | 300L/min | 400L/min | 300L/min | 500L/min |
| Capacity of compressed air | 0.4~0.6mpa,30L/min | 0.4~0.6Mpa,50L/min | 0.4~0.6mpa,30L/min | 0.4~0.6Mpa,50L/min |
| Power source | 380V 50/60HZ | |||
| Machine size | 13300*3500*3400 | |||
| Machine weight | 6500KG | 7500KG | 6500KG | 6500KG |
3. Component for Intermediate copper wire drawing machine with annealer
| Name | Quantity |
| 1. Pay-off (Wire Tangle Auto Stop) | 1 set |
| 2. HXE-17DS Main drawing machine | 1 set |
| 3. HXE-TH250 Annealing machine | 1 set |
| 4. HXE-180 Tension controller | 1 set |
| 5. HXE-SX630 Double spoolers | 1 set |
| 6. Electric cabinet | 2 set |
| 7. Operation panel | 1 set |
| 8. Steam generator | 1 set |
| 9. Gear Oil Lubrication System | 1 set |
| 10. Spare parts | 1 set |
4. Features for Intermediate copper wire drawing machine with annealer
-
Siemens PLC and Siemens Touching Screen, with Buttons as back up
-
Spare parts for one year will be provided along with the machine.
-
Structure
1-1.Frame is Iron cast and anneal to eliminate the inner stress.
1-2.Further processed by exactitude milling machine.
-
Easy in installation and maintenance.
-
Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
-
Running in a high automatization and intellectualization,no pollution
-
As the use of the frequency technology, changes in the larger context of parts of the compression ratio to meet the wide range of technology and high speed drawing.
-
Good cooling system, final wire quality is very good.
