GYTA 130KVA Cable Sheathing Machine Fiber Optic Cable Production Line
Product Details:
| Place of Origin: | China |
| Brand Name: | I-suntop |
| Certification: | SGS |
| Model Number: | I-90 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | By negotiation |
| Packaging Details: | Plastic film+wooden box |
| Delivery Time: | Min.50working days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Up to different machine |
|
Detail Information |
|||
| Usage: | Manufacturing For GYTW/GYTS/GYTA Outdoor Optical Cable | Material: | PVC/PE |
|---|---|---|---|
| Structure Speed: | Max.100m/min | Sheath Outer Diameter: | 6.0mm-35.0mm |
| Cable Core Diameter: | 4.2mm-30mm | Warranty: | 1year |
| Voltage: | 3-phase 5wire 380V 50HZ | Additional Loss: | ≤ 0.02db / Km (sm Fiber) |
| Highlight: | GYTA cable sheathing machine,130KVA cable sheathing machine,GYTA fiber optic cable production line |
||
Product Description
GYTW/GYTS/GYTA Outdoor Optical Cable Sheathing Production Line
i-suntop fiber optic cable machine 20220228.pdf
1. Description for GYTW/GYTS/GYTA Outdoor Optical Cable Sheathing Production Line:
This is an outdoor fiber cable sheathing line, used to sheath all kinds of outdoor fiber optic cables (such as GYXTW, GYTA, GYTY 53 and so on ) with PE material.
2. Features for GYTW/GYTS/GYTA Outdoor Optical Cable Sheathing Production Line:
A. The materials are PVC, LDPE, MDPE, HDPE, LSZH.
B. The temperature control is controlled by imported OMRON temperature control meter, and the temperature control is accurate.
C. The production line system can automatically adjust the outer diameter of the wire diameter through the diameter feedback function, and the wire diameter is stable.
D, International industrial computer technology control system program with high degree of automation, it can be linked with MES, ERP systems, real time tracking and managing production.
E. The main control systems and components are international famous brands, and the production line has high stability and reliability.
bility.
3. Technical parameters of GYTW/GYTS/GYTA Outdoor Optical Cable Sheathing Production Line:
| structure speed | Max.100m/min |
|
Sheath outer diameter |
6.0mm-35.0mm |
|
cable core diameter |
4.2mm-30mm |
|
pay off reel sizes |
800mm-1600mm |
|
Take up reel sizes |
800mm-1600mm |
|
Additional loss |
≤ 0.02db / km (sm fiber) |
|
Power supply requirements |
130KVA, AC380V ±10% 50HZ three-phase five-wire |
|
Power consume |
about 75 KW/h |
4. Line Configuration for GYTW/GYTS/GYTA Outdoor Optical Cable Sheathing Production Line:
| Items | Qty. |
|
Cable core pay-off |
1set |
|
Φ800 tension unit |
1set |
|
PBT tubes pay-off |
1set |
|
Strengthen member pay-off |
2set |
|
Cable jelly filling device |
1set |
|
Water blocking tape pay off |
1set |
|
Dual wheels steel / aluminium tape pay-off |
1set |
|
Steel /aluminum tape accumulator |
1set |
|
On-line seam welding device (Steel & Aluminum tape) |
1set |
|
Metal tape (Steel-Aluminum tape) corrugating device |
1set |
|
Metal tape (Steel-Aluminum tape) longitudinal forming device |
1set |
|
Φ90 extruder |
1set |
|
100KG Dryer machine and automatic hopper |
1set |
|

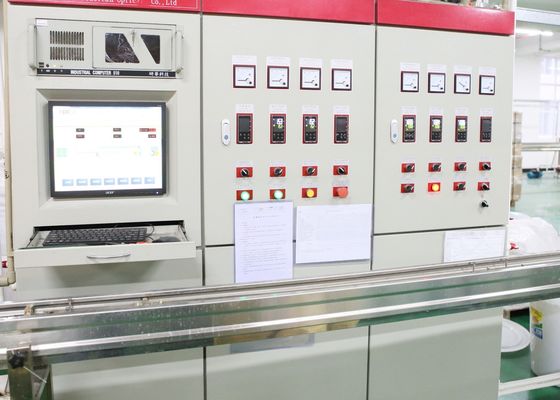

IPC+PLC program electricity control cabinet |
1set |
|
Stainless steel warm water trough and water tank |
1set |
|
Single-layer U-type stainless steel cooling water trough(with dryer and silencer device) |
1set |
|
Diameter laser gauge |
1set |
|
Spark machine |
1set |
|
Caterpillar type capstan machine |
1set |
|
Take up tension unit |
1set |
|
Take up machine |
1set |
