Single Mode Cable Manufacturing Process , ADSS Aerial Cable Manufacturing Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | I-suntop |
| Certification: | SGS |
| Model Number: | I-90 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | By negotiation |
| Packaging Details: | Plastic film+wooden box |
| Delivery Time: | Min.50working days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Up to different machine |
|
Detail Information |
|||
| Application: | Manufacturing For ADSS/GYTW/GYTS/GYTA Outdoor Optical Cable | Extrusion Material: | LDPE,MDPE,HDPE,PA12 |
|---|---|---|---|
| Structure Speed: | Max.100m/min | Finished Outer Diameter: | 6.0mm-35.0mm |
| Core Wire Diameter: | 4.2mm-30mm | Warranty: | 12month |
| Voltage: | 3-phase 5wire 380V 50HZ | Additional Loss: | ≤ 0.02db / Km (sm Fiber) |
| Highlight: | ADSS aerial cable manufacturing process,single mode cable manufacturing process,ADSS aerial cable manufacturing machine |
||
Product Description
ADSS Aerial Single Mode Fiber Optic Cable Production Line
i-suntop fiber optic cable machine 20220228.pdf
1. Description for ADSS Aerial Single Mode Fiber Optic Cable Production Line:
A, the cable machinery is Suitable for optical cable outer sheath and core strengthening comprehensive production, can also be used for inner protection layer production
B, PE inner sheath,aluminum-plastic compound belt and PE inner sheath.
C, PE outer sheath,aluminum-plastic compound belt,PE composite outer sheath,steel- plastic compound belt,PE composite outer sheath.
D, Parallel double steel wire tube bundling type optic-fibet cable.
2. Features for ADSS Aerial Single Mode Fiber Optic Cable Production Line:
A, main electric parts are importing,screw adopt the modern latest technology,Gear tooth surface abrasion resistance.
B, Low energy consumption of the equipment,a large quantity of extrusion, high production efficiency, high gloss surface,small temperature difference,low noise, good stability, strong continuity of working, convenient operation, long service life.
3. Technical parameters of ADSS Aerial Single Mode Fiber Optic Cable Production Line:
| Extrusion material | LDPE,MDPE,HDPE,PA12 |
| Max extrusion output | 250Kg/h(PE) |
| Extrusion outer diameter | Ø5-Ø35mm |
| Production speed | max.60m/min |
| Pay-off reel specification | PN800-PN1600mm |
| Take-up rell specification | PN800-PN1600mm |
| Center height of production line | 1000mm |
4. Line Configuration for ADSS Aerial Single Mode Fiber Optic Cable Production Line:
| Items | Qty. |
|
Cable core pay-off |
1set |
|
Φ800 tension unit |
1set |
|

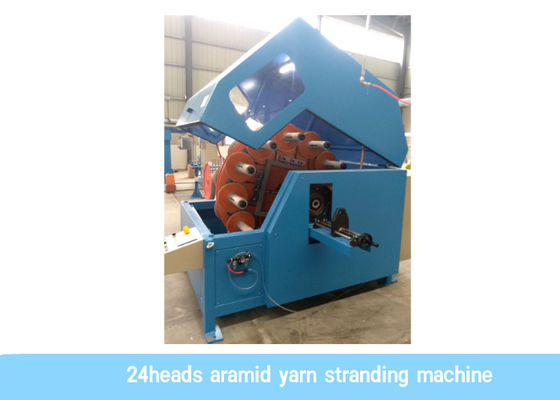

24heads aramid yarn stranding machine |
1set |
|
Cable jelly filling device |
1set |
|
Water blocking tape pay off |
1set |
|
Dual wheels steel / aluminium tape pay-off |
1set |
|
Steel /aluminum tape accumulator |
1set |
|
On-line seam welding device (Steel & Aluminum tape) |
1set |
|
Metal tape (Steel-Aluminum tape) corrugating device |
1set |
|
Metal tape (Steel-Aluminum tape) longitudinal forming device |
1set |
|
Φ90 extruder |
1set |
|
100KG Dryer machine and automatic hopper |
1set |
|
IPC+PLC program electricity control cabinet |
1set |
|
Stainless steel warm water trough and water tank |
1set |
|
Single-layer U-type stainless steel cooling water trough(with dryer and silencer device) |
1set |
|
Diameter laser gauge |
1set |
|
Spark machine |
1set |
|
Caterpillar type capstan machine |
1set |
|
Take up tension unit |
1set |
|
Take up machine |
1set |
