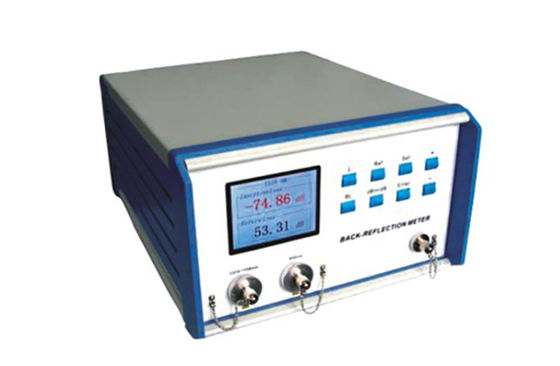

Color Screen 1550nm Return Loss Tester , IL&RL Insertion Loss Tester
Product Details:
Place of Origin: | china |
Brand Name: | I-SUNTOP |
Certification: | SGS |
Model Number: | RBTX-8600 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1set |
---|---|
Price: | By negotiation |
Packaging Details: | Plastic film+wooden box |
Delivery Time: | Min.30working days |
Payment Terms: | L/C, T/T |
Supply Ability: | Up to different machine |
Detail Information |
|||
Voltage: | AC110-240V | Working Temperature: | -5℃- +55℃ |
---|---|---|---|
Testing Scale: | 0-75db | Testing Accuracy: | 0.25db |
Output Stability: | 0.05db/hr(@25℃) | Interface Type: | FC/SC/ST |
Display Resolution Log: | 0.001dB | Linearity: | 0.001nw/uw/mw |
Highlight: | 1550nm return loss tester,75db return loss tester,75db insertion loss tester |
Product Description
Color Screen 1310/1550nm Fiber Patch Cord Insertion Return Loss Tester
1. Description of Color Screen 1310/1550nm Fiber Patch Cord Insertion Return Loss Tester
Insertion & return loss tester is widely used for testing of insertion and return loss of fiber optical passive components and fiber telecom industry. It is a basic and ideal tester for factories, research institutions and operating companies.
2. Features for Color Screen 1310/1550nm Fiber Patch Cord Insertion Return Loss Tester
It has a unique insertion loss data warning set. Different color shows. Testing efficiency is enhanced greatly. Operating is easyand electrical circuit design is superb. It saves operating steps for large active scale and micro signals detecting. Its unique designed joint can be dismounted. Power meter interface is also available.
3. Technical of Color Screen 1310/1550nm Fiber Patch Cord Insertion Return Loss Tester
Operating Wavelength
|
1310/1550nm
|
Measurement Range
|
0 ~ 75 dB
|
Calibrated Wavelength
|
1310/1550nm
|
Optical Return Loss Test
|
|
Test Accuracy
|
0.25dB
|
Output Stability
|
0.05dB/hour ( @ 25° C)
|
Optical Interface
|
FC/APC
|
Calibrated Wavelength
|
850/1310/1550nm
|
Measurement Range
|
+3 ~ -80 dBm
|
Test Accuracy
|
0.25dB
|
Optical Insertion Loss Test
|
|
Display Resolution
|
Non-linear: 0.001dB; linear: 0.001nw/μ W/mW
|
Measurement mode
|
Linear and non-linear
|
Connector type
|
Interchangeable, FC/SC/ST/ φ 2.5mm/universal /φ 1.25mm adapter
|
Overall specification
|
|
Power Supply
|
AC 100-240V
|
Operating Temperature
|
-5° C- +55° C
|
