1UM Resolution 3D Fiber Connector Interferometer Fiber Patch Cord Making Machine

1UM Resolution 3D Fiber Connector Interferometer Fiber Patch Cord Making Machine

Product Details:

Place of Origin: china
Brand Name: I-SUNTOP
Model Number: is13864

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: By negotiation
Packaging Details: Plastic film+wooden box
Delivery Time: Min.50working days
Payment Terms: L/C, T/T
Supply Ability: Up to different machine
Get Best Price Contact Now

Detail Information

Certification: ISO9001 Power Voltage: AC 220V
Test Angel: 0°~8° Objective Magnification: 10X
Resolution Ratio: 1UM Product Name: Fiber Optic Patch Cord
High Light:

3D fiber connector interferometer

,

1UM resolution 3D fiber connector interferometer

,

1UM fiber patch cord making machine

Product Description

Fiber Patch Cord Making Machine 3D Fiber Connector Inspection Interferometer

1. Description of 3D Fiber Connector Inspection Interferometer

SC, LC, FC, ST both APC and PC Fiber optic connector / jumper / pigtail connectors test inspetion.
2. Features for 3D Fiber Connector Inspection Interferometer

  • Fast, precise automatically test after manually calibation, more fast than that of automatically focus test;
  • Can test LC, SC and FC connector both PC and APC mode, including 2.5mm and 1.25mm fixtures;
  • No need to change fixtures for PC and APC test mode switching, no need to recalibrate, it can test directly after adjusting fixture platform angle only;
  • Both English and Chinese operation software, simple, easy and conveient to operate..
  • English and Chinese User Guide and vedio.
  • Professional after sales installation and opertation techical support.

3. Technical of 3D Fiber Connector Inspection Interferometer

Measurement items Measurement range Repeatability Reroducibility
Radius of curvature(mm) 3-

±0.01

±0.02

Optical fiber height(nm) -150-150

±1

±2.0

Apex offset(um) 0-500

±0.5

±1.5

Apc angle(deg) 7-9

±0.01

±0.02

Apc key error(deg)

±1

±0.01

±0.02

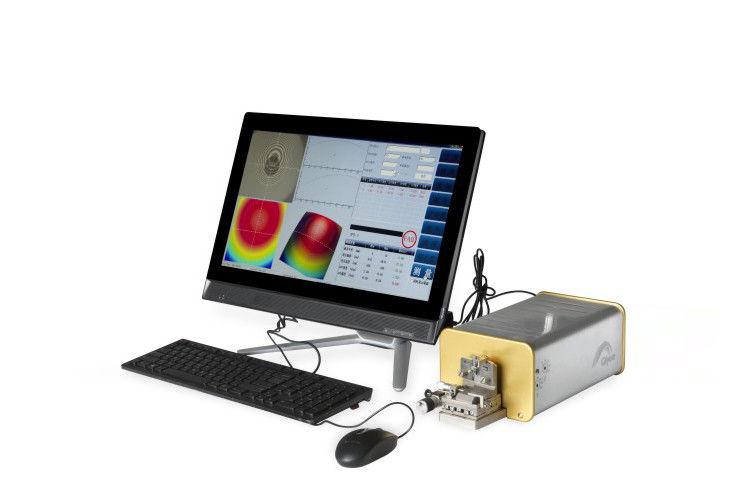

1UM Resolution 3D Fiber Connector Interferometer Fiber Patch Cord Making Machine 0



4. FAQ:

A. How do I purchase your goods?

Reply:As usual,we will prepare the suitable and competitive project according to your requirements.Then we can arrange you visit our production factory.We accept L/C and T/T payment terms.And accept FOB,CIF,EXW trade terms.

B. How long is the lead time?

Reply:As usual,7 days after received samples . This is the customized machine , must provide the cable wire and connectors .

C. Do you accept my own design ?

Reply:We can provide OEM/ODM service

D. How long is the machine warranty ?

Reply:As usual,machine warranty is 12month.During warranty, the supplier shall take the change of parts free of charge due to quality elements.Unless otherwise caused by other reasons, the buyer shall pay the cost of parts itself.

E. How to maintain the machine after warranty?

Reply:For machine ,we have one year warranty,and Permanent maintenance.After warranty,the customer shall pay all the related cost.



1UM Resolution 3D Fiber Connector Interferometer Fiber Patch Cord Making Machine 1
