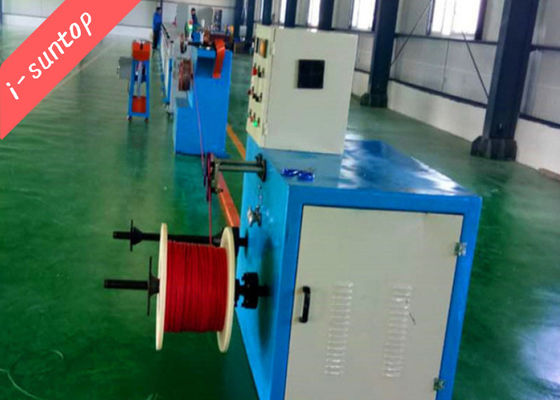

15kw 90kg/H Wire Manufacturing Machine Silicone Cable Extrusion Line
Product Details:
| Place of Origin: | China |
| Brand Name: | I-suntop |
| Certification: | SGS |
| Model Number: | I-85 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | By negotiation |
| Packaging Details: | Plastic film+wooden box |
| Delivery Time: | Min.50working days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Up to different machine |
|
Detail Information |
|||
| Usage: | Extruding | Extrusion Material: | Silicone |
|---|---|---|---|
| Screw Dia Meter: | 85mm | Voltage: | 3phase 380V 50HZ/60HZ |
| Warranty: | 1year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| High Light: | 15kw electrical wire manufacturing machine,silicone electrical wire manufacturing machine,silicone cable extrusion line |
||
Product Description
2.0~12mm Silicone Rubber Wire Cable Making Machine Extrusion Line
i-suntop Electric wire and cable equipments2022022...
1. Application for Silicone Rubber Wire Cable Making Machine Extrusion Line :
This type machine is used for making silicon cable.
Features:
- PLC+ Touch screen control , adjusting and monitoring parameter of whole production line.
- Screw and barrel special, crosshead and dies for silicon rubber to prevent inner vulcanization.
- Silicone rubber used avoiding adjusting head, water cooling system automatic control or manual control.
- Precision testing feedback system to ensure accurate wire diameter so as to reduce cost.
2. Main paramters for Silicone Rubber Wire Cable Making Machine Extrusion Line :
| Model |
GF65 |
GF85 |
| Pay-off Type | Drivng Type |
Dual-Shaft Type |
| Screw L/D Ratio | 10:1 | 10:1 |
| Screw Rotation Speed (R.P.M) | 0~35 | 0~35 |
| Extrusion(kg/h) | 70~80 | 85~90 |
| Main Power(KW) | 11 | 15 |
| Wire Dia(mm) | 0.8~6.0 | 2.0~12 |
|
Cooling Trough
|
20m Power:7kw/4m |
20m Power:3.5kw/2m |
| Haul-off Power(KW) | 2.2 | 4 |
| Line Speed(m/min) | 0~300 | 0~300 |
| Take-up Power(KW) | 2.2kw | 4kw |
3. Main items for Silicone Rubber Wire Cable Making Machine Extrusion Line :
| Item | qty. |
| Double head Active/passive pay-off | 1set |
| Vertical tension dancer | 1set |
| Rubber Main extruder | 1set |
| Electric type powder-filter | 1set |
| 20m vulcanizing oven | 1set |
| Diameter gauge | 1set |
| 500mm Dual wheel capstan | 1set |
| 9m horizontal type cable accumulator | 1set |
| 15KVpower frequency spark tester | 1set |
| Meter counter | 1set |
| dual reel take up | 1set |
| Electrical control system (PLC control optional) | 1set |
| Printer(optional) | 1set |
