PE Granules Cable Sheathing Machine , 37KW Spiral Pipe Making Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | I-suntop |
| Certification: | SGS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | By negotiation |
| Packaging Details: | Plastic film+wooden box |
| Delivery Time: | Min.50working days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Up to different machine |
|
Detail Information |
|||
| Final Pipe Application: | Cable Protection | Extrusion Material: | PE Granules |
|---|---|---|---|
| Power: | 37KW | Output (kg/h): | 100 - 150 Kg/h |
| Voltage: | 3-phase 5wire 380V 50HZ | Screw Type: | 65/90 Mm Single Type |
| High Light: | 37KW cable sheathing machine,PE Granules cable sheathing machine,37KW spiral pipe making machine |
||
Product Description
PE Fiber Optic Cable Sheathing Tube Production Line/Spiral Pipe Making Machine
i-suntop fiber optic cable machine 20220228.pdf
1. Application for PE Fiber Optic Cable Sheathing Tube Production Line/Spiral Pipe Making Machine:
PE spiral pipe protect making machine produced by our company adapted to the development trend. This pipe line has many advantages such as high production speed, high degree automation, stable working performance, large output and high efficiency and so on.
Description of spiral tube corrugated machine:

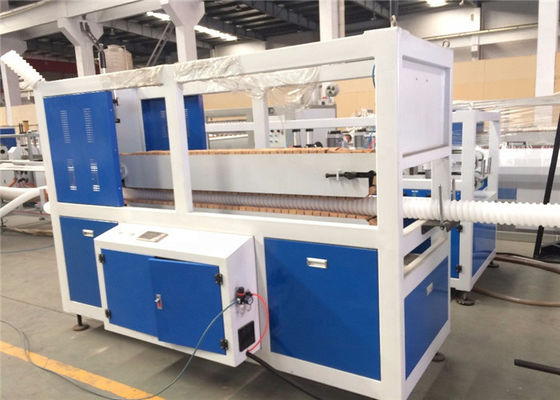

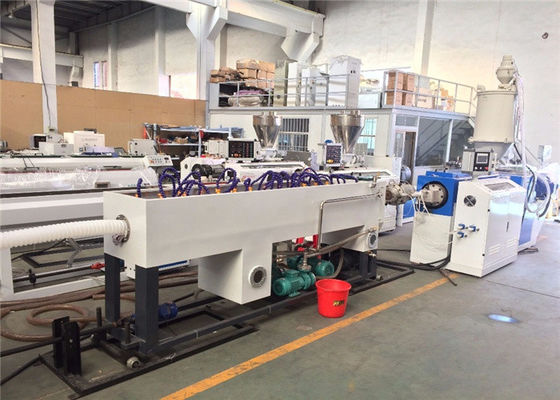

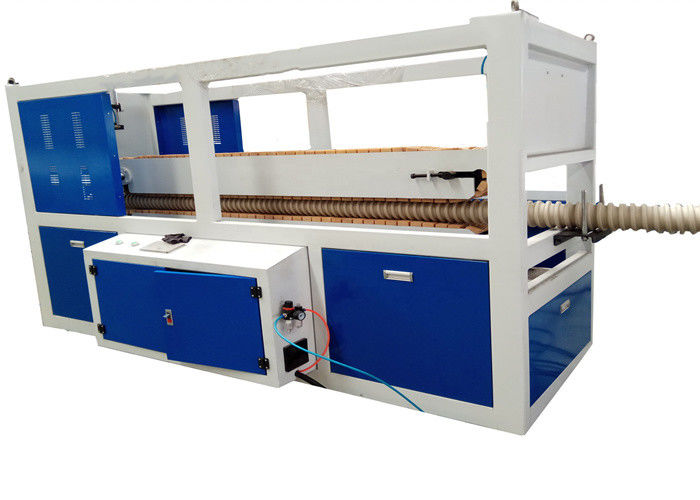

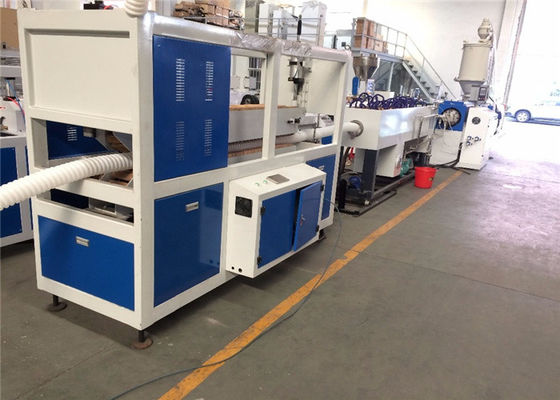

PE carbon spiral pipe production line mainly includes single screw extruder, die head, vacuum calibrating water cooling tank, haul-off machine, winding machine and cutting machine.
Single Screw Extruder: Single screw extruder is especially used for polyethylene material which possesses effective plasticizing and high speed extrusion
Die head: Standard designed spiral die head and reasonable channel are applicable to produce pipes with smooth inside and outside surface. The helix apportionment style shunt body and big flow space assure the melting material having enough staying time. Best design of low melting temperature caused in little internal pipe stress, smoothing inner and outer pipe surface.
Vacuum Calibrating Water Cooling Tank: Optimum spiral copper calibrator is equipped with pre-cooling entrance and powerful vacuum device for high speed extrusion. Unique sizing and cooling modes and special designed spraying nozzle with efficiency water cooling. It is suitable for all polyethylene material co-extrusion.
Haul-off Machine: Frequency convertor, pneumatic clamping, and simultaneous running with the whole production line.
Winding Machine: Torque motor and gear reducer.
Cutting Machine: High accuracy, low noise and fixed length cutting.
2. Specification of PE Fiber Optic Cable Sheathing Tube Production Line/Spiral Pipe Making Machine:
| Extruder | GF-90/30 | GF-65/30 |
| Die | 50-200 | 50-160 |
| Calibrating Tank | SGZL-200 | SGZL-160 |
| Haul-off Machine | SLQ-200 | SLQ-200 |
| Winding Machine | SQ-200 | SQ-200 |
