Three Phase CAT5E 2500r/Min Wire Double Twist Stranding Machine
Product Details:
Place of Origin: | China |
Brand Name: | I-suntop |
Certification: | SGS |
Model Number: | GF-500mm |
Payment & Shipping Terms:
Minimum Order Quantity: | 1set |
---|---|
Price: | By negotiation |
Packaging Details: | Plastic film+wooden box |
Delivery Time: | Min.60working days |
Payment Terms: | L/C,T/T |
Supply Ability: | Up to different machine |
Detail Information |
|||
Application: | Lan Cable Core Wire Twisting | Production Name: | 500mm Double Twisting Machine With Active Pay Off |
---|---|---|---|
Machine Type: | 500mm | Warranty: | 1year |
Suitable For: | CAT-5/5E | Power Supply: | 380V AC, Three-phase, 50Hz, |
Highlight: | 2500r/Min double twist stranding machine,CAT5E wire twist machine,CAT5E double twist stranding machine |
Product Description

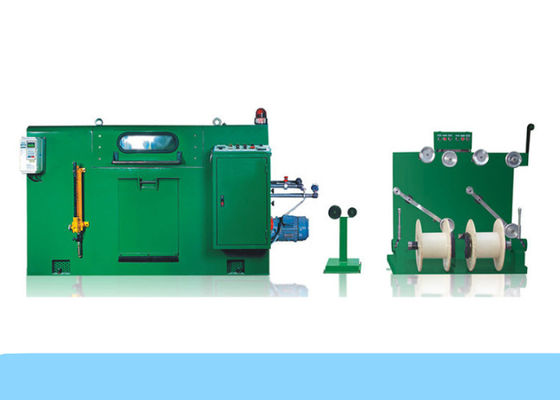

500mm Double Twisting Machine With Active Pay Off For CAT5/CAT5E Cable
i-suntop Electric wire and cable equipments2022022...
1. Application for 500mm Double Twisting Machine With Active Pay Off For CAT5/CAT5E Cable:
This double twisting machine is used for twisting the Cat5, Cat5E lan cable. Our equipment is used widely in wire and cable making industry. It is high quality ,high speed .
2. Technical parameters for 500mm Double Twisting Machine With Active Pay Off For CAT5/CAT5E Cable:
Equipment models |
500 double twisting machine+active pay off |
Twisting usage |
it apply for CAT5/CAT5E core wire pair twisting |
The max.size of wire-receiving bobbin (outer diameter×total length) |
φ500×314 |
Max core wire diameter |
Φ0.5-1.2mm |
Lay pitch(mm) |
5.8~ 54.53( can adjustable by customer's need); |
Direction of intertwist: |
"S"for left,"Z"for right |
Rotation speed of intertwist bow(r/min) |
2500RPM(5000 twist) |
Material of intertwist bow: |
spring steel belt |
Motor |
4KW, frequency-envarying speed control |
Wire-receiving stretch force structure |
Magnetic power clutch |
The up-and-down structure of wire-receiving wheel: |
manual or electricial-hydraulic type |
Electrical control type |
PLC |
Electrical control operation interface |
standard electric accessories |
achine outside shape size(mm) |
2560×1350×1400 |
Net weight of machine(kg) |
2000 |
Main bearing |
Nsk |

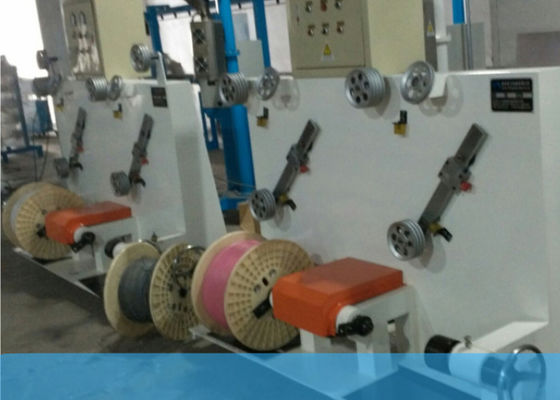

Pay off: |
Active pay off with motors, double shafts without back-twist |
