Crosslinking Slicer Cable Testing Equipment 330mm/min
Product Details:
| Place of Origin: | china |
| Brand Name: | I-SUNTOP |
| Model Number: | XL-JP400 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | By negotiation |
| Packaging Details: | Plastic film+wooden box |
| Delivery Time: | Min.30working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | Up to different machine |
|
Detail Information |
|||
| maximum Working Length: | 400 Mm | Cutting Thickness Range: | 0.5 ~ 2.0 Mm (scale Degree: 1 Mm) |
|---|---|---|---|
| circular Cross Section Specimens: | Φ 10 ~ 40 Mm (optional: Φ 160 Mm Clamp Plate). | cutting Speed: | 0.1 To 330 Mm/min, Adjustable |
| electric Drive: | Imported Ac Speed Regulating Motor, 0.20 Kw. | Power Supply: | AC 220 V / 50 Hz |
| High Light: | Crosslinking Slicer Cable Testing Equipment,330mm/min Cable Testing Equipment |
||
Product Description

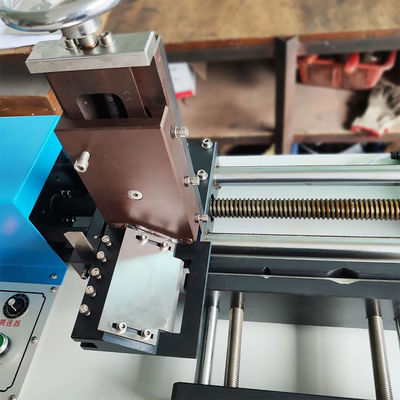

Crosslinking Cable Slicer Cable Testing Equipment
I-suntop wire and cable Testing machine20220301.pd...
1. Description of Crosslinking Cable Slicer Cable Testing Equipment
Test standards:GB/T2951-2008
Application range:suitable for XLPE and control cable.It is the necessary equipment to do the insulation and sheath sample,supporting the completion of the sample thermal extension test and tensile test(Make standard dumbbell test samples) and test the sample’s mechanical and physical properties further,as to meet the requirements of the product.It has crosscutting and mid-breaking function, vertical circle section and so on.
2. T echnical of Crosslinking Cable Slicer Cable Testing Equipment
|
maximum working length |
400mm |
|
cutting thickness range |
0.5 ~ 2.0 mm (scale degree: 1 mm) |
|
circular cross section specimens |
Φ 10 ~ 40 mm (optional: Φ 160 mm clamp plate) |
|
cutting speed |
0.1 to 330 mm/min, adjustable; When leaving the factory, the constant speed of about 150 mm/min |
|
cutting method |
sample stationary, blade horizontal direction;Head up and down adjustable range, most about 60 mm, according to the scale, manual adjustment. |
|
sharpening cutter |
broken and transverse cutting knife, 1 to form a complete set of random, sharp level. |
|
electric drive |
imported ac speed regulating motor, 0.20 kw. |
|
power supply |
AC 220 v / 50 hz. |
