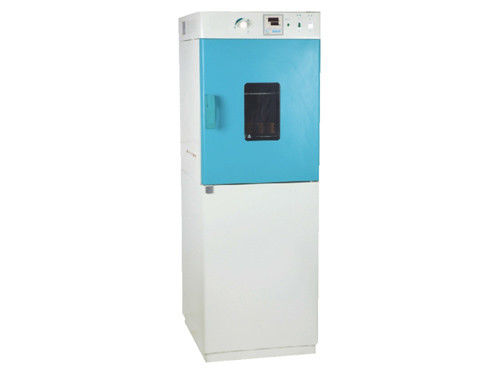

XLRD-300 Enameled Wire Heat Shock Tester
Product Details:
| Place of Origin: | china |
| Brand Name: | Wirecan |
| Certification: | ISO9001 |
| Model Number: | XLRD-300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | By negotiation |
| Packaging Details: | Plastic film+wooden box |
| Delivery Time: | Min.30working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | Up to different machine |
|
Detail Information |
|||
| Usage: | Enameled Wire | Temperature Range: | RT+10 ~ 300 ° C |
|---|---|---|---|
| Dimensions Of The Studio: | D×W×H 400×500×550 Mm | Temperature Fluctuation: | 0.5℃ |
| Temperature Uniformity: | ±2.5℃ | Consumption Power: | 1750W |
| Highlight: | Wire Heat Shock Tester,Enameled Wire Heat Shock Tester,1750W Wire Heat Shock Tester |
||
Product Description
XLRD-300 Enameled Wire heat shock tester
I-suntop wire and cable Testing machine20220301.pd...
1. Description of XLRD-300 Enameled Wire heat shock tester
-
Implementation standard: GB/ T40746-2008,IEC60851-6; Inspection standard :JB/T4279.7-2008
-
Matched with voltage tester, can be used for enameled wire high temperature breakdown voltage, high temperature failure, hot punching and other tests
-
Double shelf in the working room can be used for heating samples, workpieces, drying, aging components and so on
-
Adopt high reliability intelligent digital temperature controller, with digital setting, digital display, over temperature alarm, P (proportion) I (integral) D (differential) regulation, PID parameter self-tuning, heating timing and other functions
-
High control precision, small overshoot, easy to operate
-
Door sealing material selection of silicone rubber strip, high temperature resistance, good sealing performance
-
Ceramic insulated terminal, durable
2. Technical of XLRD-300 Enameled Wire heat shock tester
|
temperature range |
RT+10 ~ 300 ° C |
|
dimensions of the studio |
D×W×H 400×500×550 mm |
|
temperature fluctuation |
l 0.5℃ |
|
Temperature uniformity |
±2.5℃ |
|
When the test temperature was (200±5) ℃, the thermal hysteresis time (time constant) was ≤60S |
|
|
Input voltage |
AC220V± 5% 50Hz |
|
consumption power |
1750W |
|
Dimensions |
D x W x H 780 x 600 x 1700 mm |
|
Weight |
87 kg |
