High-Speed Induction Preheating Machine For Cable Manufacturing
Product Details:
| Place of Origin: | china |
| Brand Name: | Wirecan |
| Certification: | ISO |
| Model Number: | wrk-150 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | By negotiation |
| Packaging Details: | Plastic film+wooden box |
| Delivery Time: | Min.30working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | Up to different machine |
|
Detail Information |
|||
| Interface Type: | FC | Tension Times: | 0~9999 |
|---|---|---|---|
| Warranty: | 1 Year | Maximum Working Pressure: | 4MP/cm2 |
| Display: | LED | Electrode: | 200mm*300mm |
| Keyword: | HV Resonance Test System | Suitable Material: | Copper |
| Usage: | Test Flexing Capability Of Cables | Power Supply: | 380V/50Hz |
| Keyward: | EN50339 Bunched Cable Tester | Quality: | High Performance |
| Drive Type: | Manual | Pendulum Length: | 1000mm |
Product Description

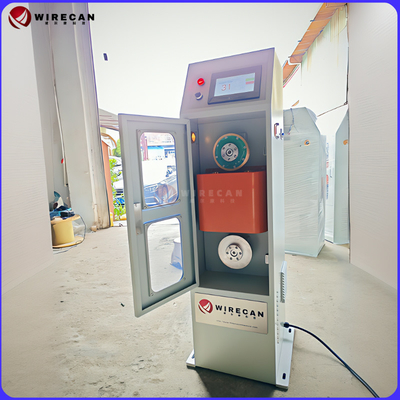

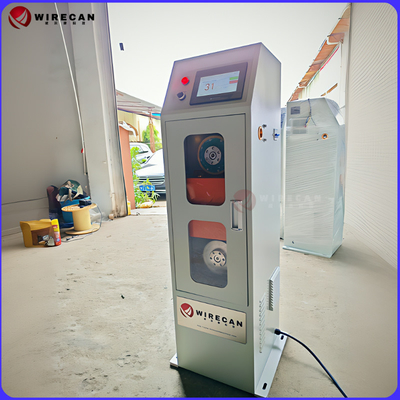

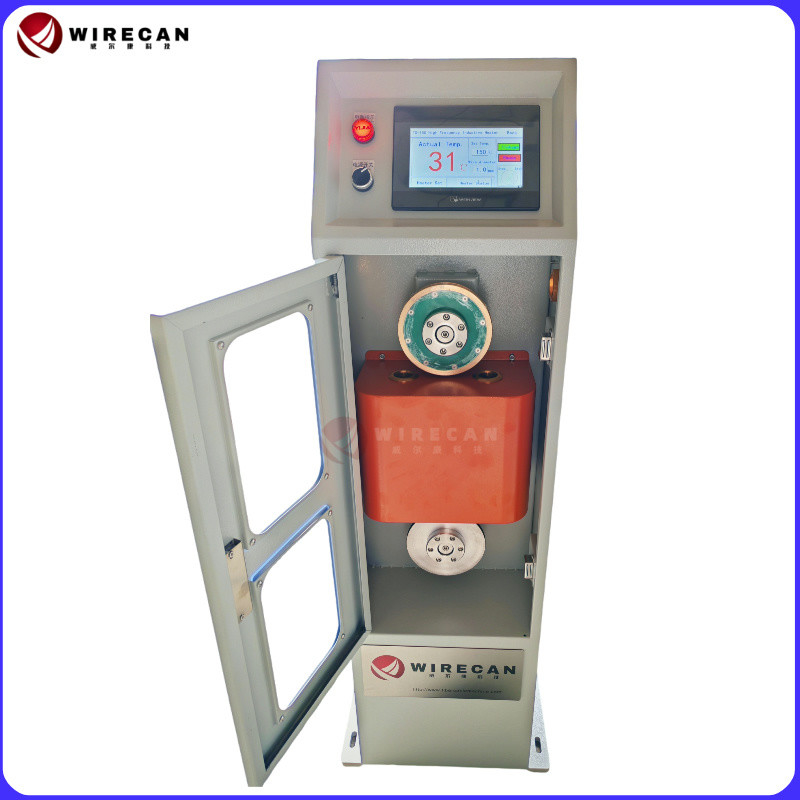

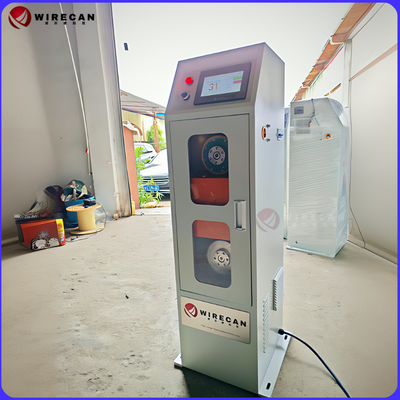

The TS-150 High Frequency Induction Preheater by Dongguan Wirecan is a high-efficiency preheating solution designed for copper, aluminum, and alloy wires.
It uses advanced high-frequency induction technology to ensure uniform wire heating before extrusion, significantly improving the adhesion of insulation layers and enhancing cable quality. This preheater is ideal for use in high-speed extrusion lines in wire and cable manufacturing.
-
High-Frequency Induction Heating: Frequency up to 4.5 kHz for even and efficient wire heating.
-
Speed Tracking System: Automatically adjusts power based on line speed to maintain consistent temperature.
-
Automatic Temperature Calibration: Select wire specifications to ensure accurate heating temperature.
-
Temperature Compensation Function: Adapts to room temperature changes to maintain heating precision.
-

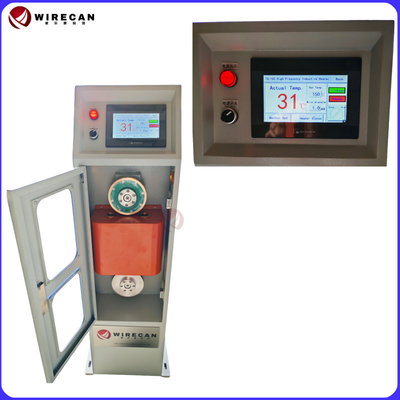

User-Friendly HMI: Simple and intuitive touch screen interface for easy operation.
-
RS-485 Communication (Optional): Supports remote control and integration with production lines.
-
Stable Power Supply: 380V, three-phase, 50/60Hz compatible.
-
Energy Efficient: Preheats uniformly at high speeds, optimizing energy use and reducing waste.
-
OEM & ODM Support: Wirecan provides customization support tailored to project needs.
-
Compact & Robust Design: Suitable for continuous production environments.
Technical Parameters:
| Parameter | Specification |
|---|---|
| Model | TS-150 |
| Applicable Materials | Copper, Aluminum |
| Capstan Diameter | 148 mm |
| Wire Diameter Range | 0.25 - 1.0mm |
| Linear Speed | 0 - 1000 m/min |
| Preheating Temperature | Room Temp. - 300°C |
| Inlet/Outlet Line Height | 1000 mm |
| Power Supply | 380V / 50-60Hz / Three-phase five-wire |
| Max Power Consumption | 6 kW |
| Communication Interface | RS-485 (Optional) |
