High-Speed PVC Cable Extrusion Line For Power & Communication Wire Manufacturing
Product Details:
| Place of Origin: | china |
| Brand Name: | Wirecan |
| Certification: | ISO |
| Model Number: | 65+35 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Plastic film+wooden box |
| Delivery Time: | 30 works day |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Usage: | Round And Flat Electric Cable | Productivity: | 30 Meter Per Minute |
|---|---|---|---|
| Raw Material: | Light Strip | Power Supply: | 28kw |
| Type: | Cable Making Machine | Applicable Industries: | Manufacturing Plant |
| Power: | 5KW | Final Production: | Le Wire |
| Wire Diameter: | 0.5 Sq Mm - 6 Sq Mm, Below 10 Sq Mm | The Rolling Speed: | 780 RPM Max |
| Production Capacity: | 100m/min | Local Service Location: | Saudi Arabia |
| Use: | WINDING | After Warranty Service: | Video Technical Support |
| Finished Wire Diamter: | 1.0-12mm | ||
Product Description

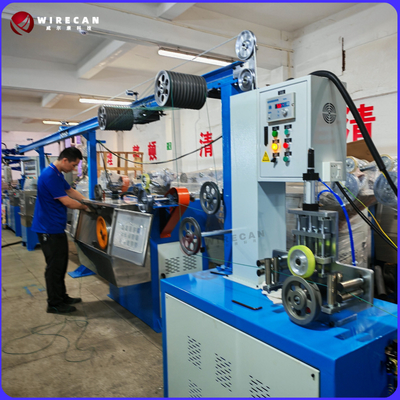

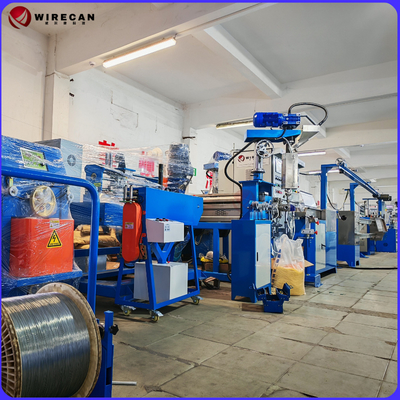

The Φ60+35 PVC Extrusion Line is a specialized cable manufacturing system designed for producing high-quality single and dual-layer PVC-insulated wires and cables.
This line combines a main 60mm extruder with a 35mm auxiliary extruder, enabling core and skin co-extrusion or stripe extrusion.
This makes it suitable for a wide range of applications, including power cables, building wires, control cables, and electronic wires.
Key Features:
-

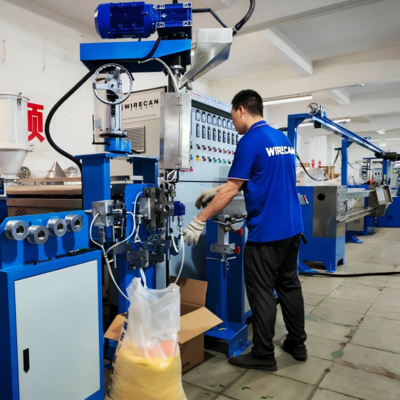

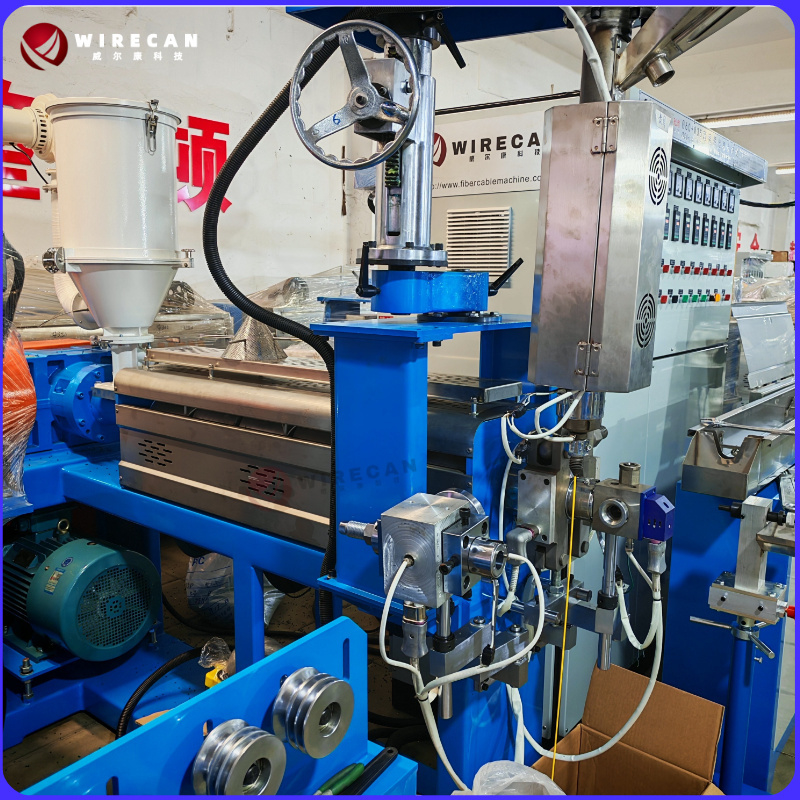

Main Extruder (φ60): Equipped with a high-precision screw and barrel for stable plasticizing and high output capacity.
-
Auxiliary Extruder (φ35): Ideal for stripe marking or skin coating functions.
-
Precision Temperature Control: Multi-zone PID temperature system ensures accurate heating and material stability.
-
Advanced Control System: Integrated PLC with touchscreen HMI for user-friendly operation and real-time monitoring.
-
High-Speed Capstan & Take-up: Supports continuous production at speeds up to 300 m/min, depending on cable size.
-
Application Materials: PVC, LSZH, PE for various wire insulation and sheathing.
| Model | Φ60+35 PVC Cable Extrusion Line |
|---|---|
| Main Extruder | Φ60mm high-efficiency screw extruder |
| Auxiliary Extruder | Φ35mm extruder for stripe or skin coating |
| Application Materials | PVC, LSZH, PE |
| Applicable Cable Size | 0.5mm² ~ 10mm² cables |
| Line Speed | Up to 300 meters/min (depending on wire size) |
| Heating Zones | 5 zones (main extruder), 3 zones (auxiliary) |

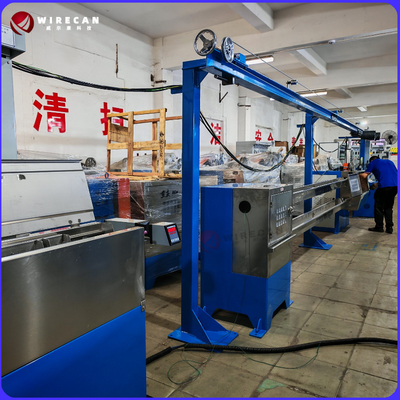

| Cooling System | Water trough with automatic temperature control |
| Control System | Siemens PLC with 7" HMI touchscreen |

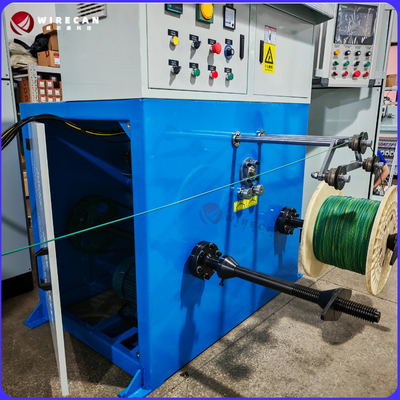

| Take-up Unit | Double wheel capstan with automatic tension control |
| Power Supply | 380V / 50Hz / 3 Phase |
| Usage | Electrical wire, control cable, communication cable |
Applications:
-
Low-voltage electric wire and cable insulation
-
Signal and communication cable
-
Automotive wiring
-
PVC jacketed control and power cables
