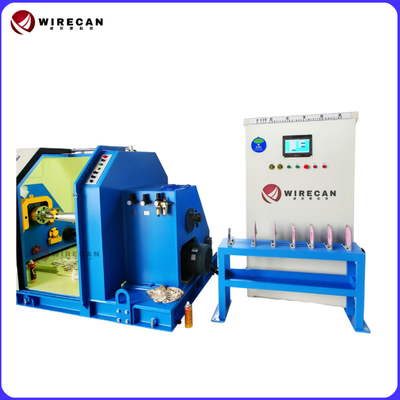

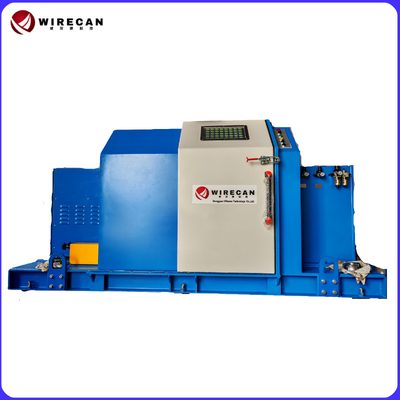

High Speed Cantilever Stranding Machine With Steady Tension (WRK Series) For Data/Computer/Power Cable Production
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Wirecan |
| Certification: | ISO |
| Model Number: | wrk-630 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | USD 35000 |
| Packaging Details: | Plastic film+wooden box |
| Delivery Time: | 30 works day |
| Payment Terms: | T/T |
| Supply Ability: | 10 Piece/ Pieces Per Month |
|
Detail Information |
|||
| Conductor Diamter: | 0.16-1.0mm | Main Motor: | 22kw |
|---|---|---|---|
| Twist Coil: | 2~8 Coils/second, It Can Adjust. | Suitable For: | CAT6/7/8 Lan Cable |
| Twisting Direction: | Clockwise/Counterclockwise | Fit Wire Diameter: | 0.03mm-0.45mm |
| Material: | Steel | Number Of Twisting Heads: | 2 |
| Gearbox: | 6 Steps | Type: | Double Twisti |
| Twisting Pitch: | Adjustable | Motor Brand: | Siemens |
| Main Machine Power: | 11kw | Inverter Brand: | Yaskawa |
| Speed: | 80-120 Meters Per Min | ||
Product Description
1. Product Overview
The Donguan Wirecan Cantilever Single Stranding Machine is a professional wire and cable production equipment, specifically designed for twisting and stranding multi-strand core wires of high-frequency cables, data cables, computer cables, and power cables. As the latest cantilever twisting machine equipped with a capstan, it combines high productivity, accurate pitch control, and superior product quality, effectively meeting the stringent requirements of modern cable manufacturing for efficiency and performance.
2. Core Advantages (Buyer-Focused)
- 2x Higher Productivity: Equipped with high rotating speed (max. 800 RPM for WRK-630), production efficiency is twice that of traditional stranding machines, significantly reducing production cycles.
- Steady Tension & No Adjustment: Take-up, wrapping tension (adopts magnetic clutch + PLC automatic calculation) remains constant from start to end, ensuring uniform stranded conductor quality without manual intervention.
- Precise Pitch Control: Pitch (20-250mm) is set via touch screen and controlled by PLC, maintaining stable pitch even during speed acceleration or deceleration deviation in product specifications.
- Superior Electrical Performance: Fewer wire guiding wheels minimize damage to the wire's electric property, ensuring the final cable meets high conductivity and transmission requirements.

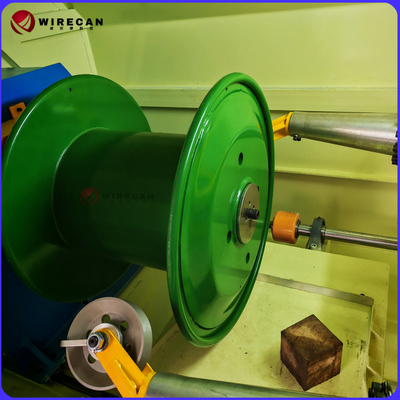

- Flexible Traversing: Take-up by moving the shaft (no damage to wires); traversing space and pitch can be adjusted freely according to different wire specifications, adapting to diverse production needs.
- Versatile Application: Widely used for multi-strand core twisting of high-frequency wires, data wires, computer wires, and power wires, one machine for multiple cable types.
- Advanced Configuration: Equipped with a single-head horizontal high-speed centering taping machine + double-head longitudinal taping machine, enhancing overall production efficiency and product consistency.
