BVR Building Electric 30HP Wire Cable Making Machine Insulation
Product Details:
| Place of Origin: | China |
| Brand Name: | I-suntop |
| Certification: | SGS |
| Model Number: | I-60/70/80/90 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | By negotiation |
| Packaging Details: | Plastic film+wooden box |
| Delivery Time: | Min.30working days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Up to different machine |
|
Detail Information |
|||
| Application: | BV/BVR Building Wire | Extrusion Material: | PVC/PE |
|---|---|---|---|
| Conductor: | Copper | Screw Dia Meter: | 60/70/80/90mm |
| Voltage: | 3phase 380V 50HZ/60HZ | Warranty: | 18month |
| Hs Code: | 84794000 | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| High Light: | 30HP wire cable making machine,BVR building wire cable making machine,30HP electric wire making machine |
||
Product Description
BV/ BVR Building Wire Cable Making Machine Extrusion Production Line
i-suntop Electric wire and cable equipments2022022...
1. Application for BV/ BVR Building Wire Cable Making Machine Extrusion Production Line :
This equipment is applicable to outer surface extrusion of wires and cables for insulation materials such as PVC/PE
2. Specification for BV/ BVR Building Wire Cable Making Machine Extrusion Production Line :
| Model | GF-70+35mm |
| pay-off way | motorised single head pay-off/double spool tension pay-off/magnetic type pay-off |
| pay-off bobbin | PN-400-630mm |
| screw diameter | Φ70mm |
| L/D of screw | 26:1 |
| extrusion volume | 150kg/hour |
| main power | 30HP |
| wire diameter | 1.5-12mm |
| capstan power | 5HP |
| cooling device | water sink |
| cable accumulation way | horizontal accumulator |
| accumulation length | 250m |
| max.speed | 500m/min |
| take-up bobbin dia | PN400-630mm |
| take-up way | double spool take-up(bobbin or reel) |
3. Main parts for Insulation BV/ BVR Building Wire Cable Making Machine Extrusion Production Line:
| Item | qty. |
| Double head Active/passive pay-off | 1set |
| Vertical tension dancer | 1set |
| Main extruder | 1set |
| extruder for stripe extrusion | 1set |
| 1.5m pre-water cooling trough | 1set |
| Diameter gauge | 1set |
| 8m Single layer main cooling trough | 1set |
| 500mm Dual wheel capstan | 1set |
| 9m horizontal type cable accumulator | 1set |
| 15KVpower frequency spark tester | 1set |

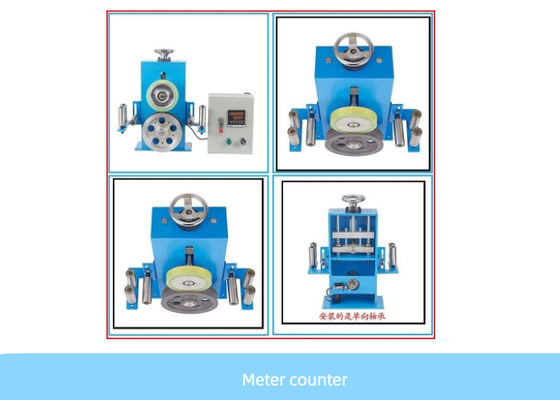

| Meter counter | 1set |
| dual reel take up | 1set |
| Electrical control system (PLC control optional) | 1set |
| Powder device(optional) | 1set |
| Printer(optional) | 1set |
4.what is your company after-sales service ?
Pre-sale training: In order to guarantee the customers fully to operate the machine, if the customer need, we can help customer training, includes
1)Correct operating mode
2)Correct maintenance way
3)Remove simple problem of our product
Since the shipment date, our company freely assuring period of after-sale maintenance service is:
1)1year for mechanical part
2)6 month for electrical part
