Product Description

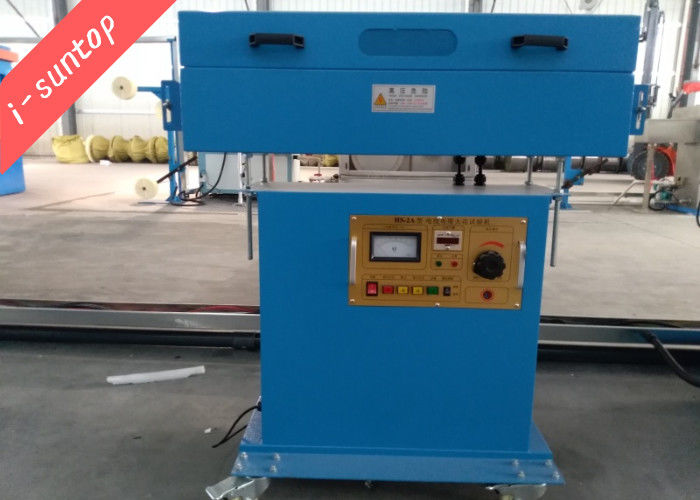

Digital Type Spark Test Machine for Wire and Cable

i-suntop Electric wire and cable equipments2022022...

1. Application for Wire And Cable Spark Test Machine

Cable and wire sparker test machine is a necessary test equipment for wire and cable manufacturing process and using high voltage to test the insulation quality. The EDM sensitivity <600μA, UL1581-1990 requires the series of sparks machine using epoxy casting high-voltage transformer, moisture-proof performance, strong anti-interference ability, they can always check the work is normal with self-test button (breakdown, count , sound and light alarm) to ensure test accuracy.

Suitable for testing the quality of wire covering or insulator in the production of wire cable.The test method is giving a certain voltage between the conductor and the electrode for a certain period of time, and then check whether it can withstand the voltage value. When the electronic loop, the needle hole is automatically counted.

2. Features for Wire And Cable Spark Test Machine

Integrated circuit control, multiple protection, pure copper bead chain or 304 stainless steel bead chain durable.Detection voltage is continuously adjustable(high voltage indication error 3%) sensitivity <600μA: good stability, no error with water,no error in the breakdown count.The breakdown count is automatically alarmed.The breakdown point is particularly visible.Durable and corrosion resistant,compact structure,beautiful and easy to maintain.The electrode box is equipped with a mechanical ground protection spring to ensure safety.High voltage transformers above 30KV are oil-immersed.

3. Mian Paramters for Spark Test Machine
