Face Mask Single Core Double Core Nose Wire Cable Extrusion Production Line
Product Details:
| Place of Origin: | China |
| Brand Name: | I-suntop |
| Certification: | SGS |
| Model Number: | I-35/45/60 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | By negotiation |
| Packaging Details: | Plastic film+wooden box |
| Delivery Time: | Min.50working days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Up to different machine |
|
Detail Information |
|||
| Application: | Extruding For Nose Wire | Extrusion Material: | PVC/PE |
|---|---|---|---|
| Screw Dia Meter: | 35/45/60mm | Voltage: | 3phase 380V 50HZ/60HZ |
| Warranty: | 18month | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Highlight: | double core cable triple extrusion process,36kw cable triple extrusion process,double core cable extrusion line |
||
Product Description

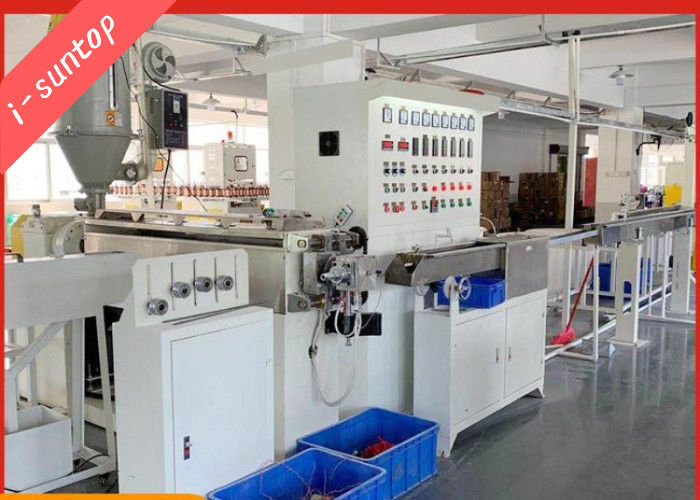

Face Mask Single Core Double Core Nose Wire Cable Extrusion Production Line
i-suntop Electric wire and cable equipments2022022...
1. Specification for Face Mask Single Core Double Core Nose Wire Cable Extrusion Production Line :
- Installation power: 36kw, Actual consumption electricity consumption 60~70%
- Material: PP or PE or pvc granual
- Machine Dimension: 13*2*2.5m
- Product Dimension: diameter: 3.5-10.0mm
- Manpower: 1-2 persons required to operate whole plant
- Mould Design: one-in-one type, two-in-one type
- with metal/without metal
2. Main paramters for Face Mask Single Core Double Core Nose Wire Cable Extrusion Production Line :
| item | model | motor power | capacity |
| 1 | GF35 | 3kw/5.5KW | 8-12KGS/H |
| 2 | GF45 | 7.5KW/11KW | 20KGS/H |
| 3 | GF60 | 15KW /18.5KW | 60-80KGS/H |
3. Main items for Face Mask Single Core Double Core Nose Wire Cable Extrusion Production Line :
| No | Machine name | Q'ty |
| 1 | Steel wire unwinding and straigtening system | 1 set |
| 2 | Single Screw Extruder with automatic material loading and drying machine | 1 set |
| 3 | Mould | 1 set |
| 4 | Water cooling tank I | 1 set |
| 5 | Water cooling tank II | 1 set |
| 6 | Haul-off machine | 1 set |
| 7 | filament storage with accumulator- | 1 set |
| 8 | double Winding Machine | 1 set |
