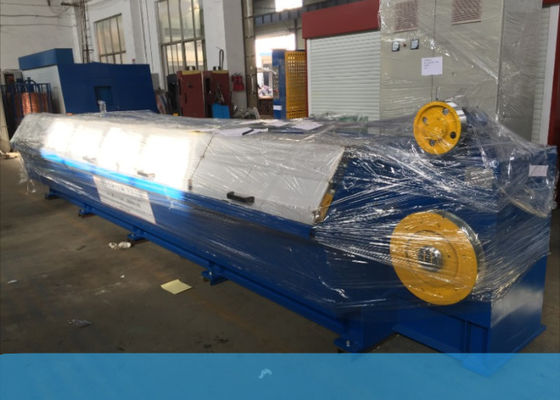

75kw 13die Silver Wire Drawing Machine With Automatic Dual Take Up
Product Details:
| Place of Origin: | China |
| Brand Name: | I-suntop |
| Certification: | SGS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | By negotiation |
| Packaging Details: | Plastic film+wooden box |
| Delivery Time: | Min.50working days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Up to different machine |
|
Detail Information |
|||
| Application: | Aluminum Rods | Inlet DiameMax.14mmter: | Max.9.5mm |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Warranty: | One Year Warranty |
| Drawing Dies: | 13 | Outlet Wire Diameter: | ≤3.0-1.7mm |
| Highlight: | 13die silver wire drawing machine,75kw silver wire drawing machine,13die automatic wire drawing machine |
||
Product Description
9.5mm Al Rod Breakdown Wire Drawing Machine With Automatic Dual Take-Up
I-suntop copper wire drawing machine20220301.pdf
1. Application for 9.5mm Al Rod Breakdown Wire Drawing Machine With Automatic Dual Take-Up:
-
The LD-13/450 big Al Rod Breakdown Machine with automatic dual take-up applies to continuous drawing aluminum rods from Φ9.5mm to 3.0-1.7mm.The entire production line is similar to big Copper Rod Breakdown Machine in using dual take-up(or single coll take-up),intelligent control,fully automatic switch,loading and unloading reel without stopping.The structure of this machine includes three parts:transmission box,water tank and a constant speed wheel. Gear transmission is done from cone pulley to constant speed wheel. It overcome the disadvantage which constant speed wheel of the common heavy wet wire drawing machine is driven by motor V-belt and make the speed synchronization performance be lower between cone pulley and constant speed wheel .
-
The whole machine includes the following:
-
Gantry pay-off frame,crossing die pointing machine,75KW motor,LD13-450 big Al Rod Breakdown Machine,dual take-up(or a single reel take-up or a coiler take-up machine),the electric control system.
2. Specification for 9.5mm Al Rod Breakdown Wire Drawing Machine With Automatic Dual Take-Up
|
Fix-speed wheel diameter |
Φ450mm |
|
Drawing dies |
13 |
|
Inlet wire diameter |
Φ9.5mm |
|
Outlet wire diameter |
≤3.0-1.7mm |
|
Total compression rate |
96.8% |
|
Average compression rate |
23.3% |
|
Drawing speed |
13% |
|
Motor power |
75KW |
|
Weight |
5ton |
|
External dimensions |
3300×1100×1300ton |
