Fiber Optical SC FC ST Light Source Power Meter FTTH Tools
Product Details:
| Place of Origin: | china |
| Brand Name: | JW |
| Model Number: | JW3208 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | By negotiation |
| Packaging Details: | Plastic film+wooden box |
| Delivery Time: | Min.30working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | Up to different machine |
|
Detail Information |
|||
| Use: | FTTH | Product Name: | Optical Light Source |
|---|---|---|---|
| Operating Temperature: | -10 -- +50℃ , < 90%RH | Alibrated Wavelengths(nm): | 850/980/1300/1310/1490/1550 |
| Power Supply: | 3 Pcs1.5V AA Batteries | Optical Connector: | FC,SC,ST |
| High Light: | ST Light Source Power Meter,Fiber Optical Light Source Power Meter |
||
Product Description
FTTH Tools Fiber Optical SC FC ST Light Source Power Meter
1. Description of FTTH Tools Fiber Optical SC FC ST Light Source Power Meter
-

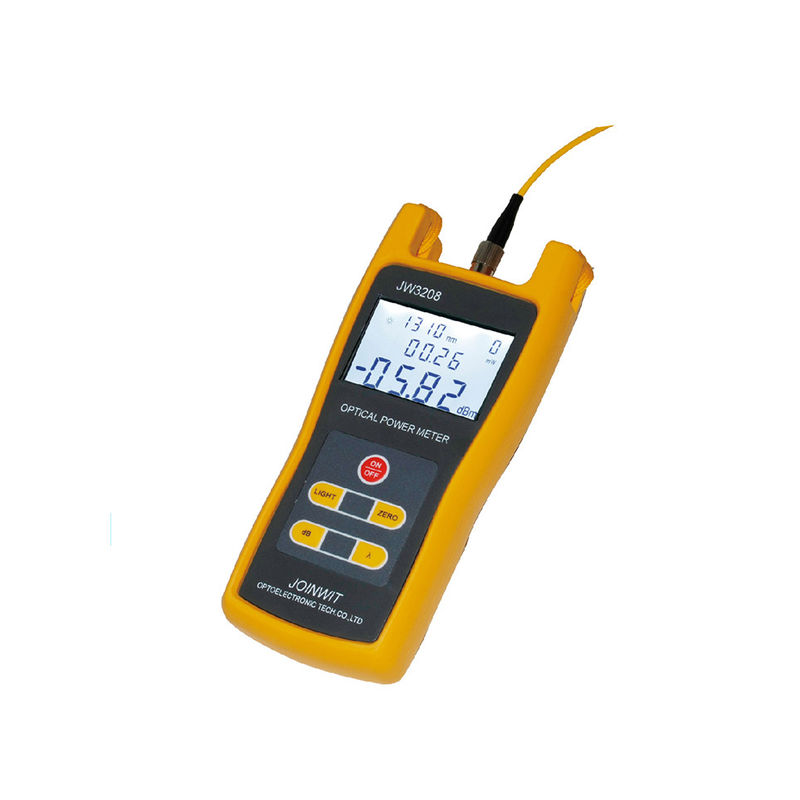

JW3208 handheld optical power meter is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements. It features ingenious appearance, wide range of power measurement, high accuracy and user self-calibration function with high performance-to-price ratio.
2. Technical of FTTH Tools Fiber Optical SC FC ST Light Source Power Meter
|
Type |
JW3208A |
JW3208C |
|
Wavelength(nm) |
800~1700nm |
|
|
Detector |
InGaAs |
|
|
Measurement Range (dBm) |
-70~+6 |
-50~+26 |
|
Uncertainty |
±5% |
|
|
Calibrated Wavelength(nm) |
850,980,1300,1310,1490,1550 |
|
|
Resolution(dB) |
0.01 |
|
|
Optical Connector |
FC(interchangeable SC,ST) / as well as 2.5mm universal |
|
|
Power Supply |
Alkaline Battery(3 AA 1.5V batteries) |
|
|
Battery Operating Time |
240 h with 1.5V Battery(3) |
|
|
Operating Temperature(°C) |
-10 ~ +60 |
|
|
Storage Temperature(°C) |
-25 ~ +70 |
|
|
Relative Humidity |
0 to 95% (non-condensing) |
|
|
Dimension(mm) |
175x82x33 |
|
|
Weight(g) |
310 |
|
3. Features of FTTH Tools Fiber Optical SC FC ST Light Source Power Meter
-
Self calibration by user himself
-
Rechargeable lithium battery supports continuous work for up to 48 hours.
-
Linear indicators (mW) and non-linear indicators (dBm) display in one screen
-
UniqueFC/SC/ST universal port (see Figures 1, 2), no complex conversion VFL function
-
4-digit LCD display, supporting three display formats: dB,nw and dBm
-
Automatic range switching
-
Automatic power-off, BacklightON/OFF
-
Multi-wavelength measurement
-
Low power indication
