Double Section Double Porcelain Eyelet Cable Blow Dryer For Cable Extrusion Line
Product Details:
| Place of Origin: | China |
| Brand Name: | Wirecan |
| Certification: | ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | By negotiation |
| Packaging Details: | Plastic film+wooden box |
| Delivery Time: | Min.30working days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Up to different machine |
|
Detail Information |
|||
| Application: | Can Quickly Dry The Surface Moisture Of Wire | Type: | Single And Double Section |
|---|---|---|---|
| Size: | 4-30mm | Wheel Material: | Porcelain |
| Main Frame Material: | POM Plastic | Speed: | Max.1000m/min |
| High Light: | Double Porcelain Eyelet Cable Blow Dryer,Double Section Cable Blow Dryer |
||
Product Description
Double Section Double Porcelain Eyelet Cable Blow-Dryer For Cable Extrusion Line
1. Application for Cable Blow-dryer
The water blower device is widely used for its energy saving, environmental protection and economy, especially for wire and cable production Industry. In the design of the scientific fluid principle, can quickly dry wire surface moisture, to save gas,High efficiency, low noise effect. Single section water blower device line speed can reach 1000m/min, double section water blower installed The line speed can reach 1500m/min, which can easily meet the requirements of production line.
|

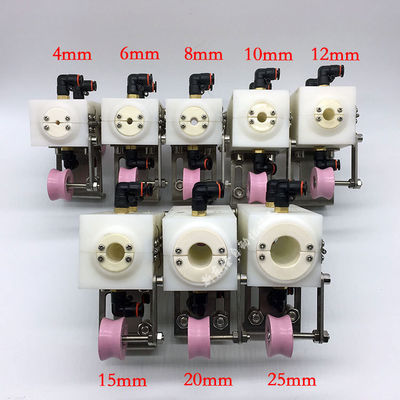

single section normal blow-dryer |
inner hole 4-200mm |
|
single section with Porcelain Eyelet normal blow-dryer |
inner hole 4-30mm |
|
double section normal blow-dryer |
inner hole 4-200mm |
|
double section with Porcelain Eyelet normal blow-dryer |
inner hole 4-30mm |
2. Mian Material for Cable Blow-dryer
The main material is imported POM plastic (also known as polyformaldehyde resin, steel material), with fine appearance and wear resistance Good, the regulating wheel bearing adopts stainless steel high-speed bearing, all metal parts of the water blower (bearing, spring, bracket,Screws, nuts, regulating wheel fixing plate) are stainless steel, never rust, durable.
3. Mian structure for Cable Blow-dryer

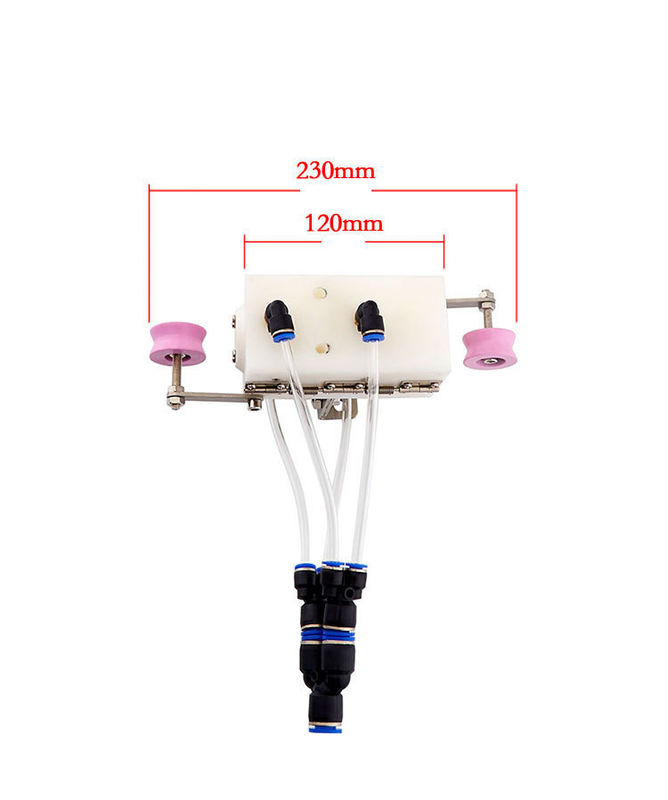

Compact volume, easy to operate, the main body of loose-leaf open type, wire knotting and drum can be smoothly through, ensure life Continuous production, before and after the installation of guide wheel (plastic wheel and ceramic wheel two), can be adjusted up and down around,To prevent the wire from being scratched when passing through the blowing device.
4. Installation for Cable Blow-dryer
This product contains mounting bracket, easy to install, the bracket can be adjusted height and Angle. Mounted in water tank (covered) Or lead box. First choose the fixed position, drill two 8mm holes with an electric drill, and fasten them with a screw lock Seat, plug in the air pipe (the intake pipe is 10mm), adjust the height and center position of the regulating wheel before and after ventilation Use.
