High Speed 60+35mm Insulation Wire Extrusion Line With Auto Take Up Machine

High Speed 60+35mm Insulation Wire Extrusion Line With Auto Take Up Machine

Product Details:

Place of Origin: China
Brand Name: Wirecan
Certification: ISO9001
Model Number: I-60+35

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: By negotiation
Packaging Details: Plastic film+wooden box
Delivery Time: Min.30working days
Payment Terms: L/C,T/T
Supply Ability: Up to different machine
Get Best Price Contact Now

Detail Information

Usage: Extrusion Voltage: 3phase 5wire,380V 50-60HZ
Warranty: 12month,,longtime Maitenance Name: High Speed Wire Extrusion Line
Line Speed: MAX.800M/MIN Wire Range: 0.5-2mm
High Light:

Insulation Wire Extrusion Line

,

High Speed Wire Extrusion Line

,

800M/MIN Wire Extrusion Line

Product Description

High Speed 60+35mm Insulation Wire Extrusion Line With Auto Take Up Machine

i-suntop Electric wire and cable equipments2022022...

1. Application for high speed cable insulation extrusion line:

  • The device is mainly used for covering network core wires,extrusion material PVC/PE.

2. Data sheet  for high speed cable insulation extrusion line:

Machine type GF-60+35
Pay off type motorized/double-shaft
Screw diameter Φ35 and Φ60
Screw L/D 35mm:16:1,60mm:26:1
Max.extrusion output 35mm:30kg/h,60mm:90kg/h
Motor power 50mm:15KW  ,35mm:2.2KW
Wire diameter

Φ0.6~Φ4.0mm

Cooling device Folding type W/U type
Haul-off power 2.2KW
Wire-storage length 180-250m
Max. Line speed 800m/min
Take-up type Semi-auto take up machine(manual lift bobbin)

3. Component for 60+35mm insulation extrusion line:

Item qty.
Φ300—Φ500mm single head pay-off 1set
Vertical tension dancer 1set
Φ60 main extruder 1set
Φ35 infuse coloring extruder 1set
1.5m pre-water cooling trough 1set
Diameter gauge 1set
8m double layer main cooling trough 1set
400mm Dual wheel capstan 1set
9m horizontal type cable accumulator 1set
15KV spark tester 1set
Meter counter 1set

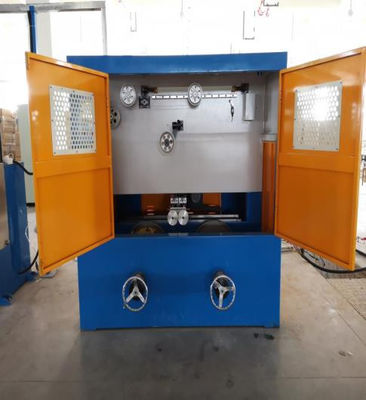

Φ500mm semi-auto dual reel take up machine 1set
Electrical control system (PLC control) 1set
High speed Copper preheater 1set
