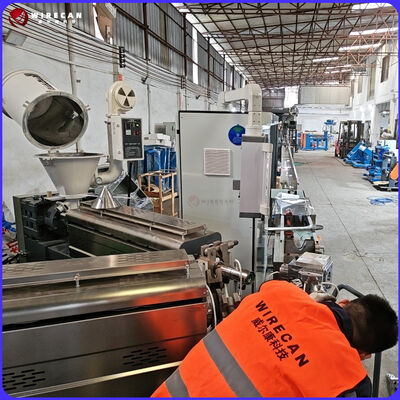

GF-80+60+50mm PLC Control Wire Extrusion Line For Building Wire Production
Product Details:
| Place of Origin: | china |
| Brand Name: | Wirecan |
| Certification: | ISO |
| Model Number: | 80+60+50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Plastic film+wooden box |
| Delivery Time: | 30 works day |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Usage: | Round And Flat Electric Cable | Productivity: | 30 Meter Per Minute |
|---|---|---|---|
| Raw Material: | Light Strip | Power Supply: | 28kw |
| Type: | Cable Making Machine | Applicable Industries: | Manufacturing Plant |
| Power: | 5KW | Final Production: | Le Wire |
| Wire Diameter: | 0.5 Sq Mm - 6 Sq Mm, Below 10 Sq Mm | The Rolling Speed: | 780 RPM Max |
| Production Capacity: | 100m/min | Local Service Location: | Saudi Arabia |
| Use: | WINDING | After Warranty Service: | Video Technical Support |
| Finished Wire Diamter: | 1.0-12mm | ||
Product Description
-
WIRECAN introduces the 80+60+50mm Triple-Layer Co-Extrusion Line, a robust solution for manufacturers looking to upgrade their production of multi-layer power, control, and building wires.
- Seamless Synchronization: The 80/60/50mm configuration, managed by an intuitive PLC system, ensures consistent product quality and perfect layer bonding.
- Increased Profitability: The integrated workflow—from extrusion to automatic packaging—minimizes manual intervention, allowing for 24/7 high-speed operation with minimal downtime.
- Market Readiness: Fully compliant with Western technical standards, providing a future-proof platform for manufacturers targeting high-value global contracts.
System Configuration
The 80+60+50mm extrusion line is designed as a multi-layer co-extrusion system, allowing precise control of each material layer.
-
Co-Extrusion Capability
The system supports two-layer or three-layer co-extrusion, enabling structures such as skin–core–skin or insulation–sheath combinations. -
Independent Extruder Control
Each extruder operates independently while being synchronized through a PLC control system, ensuring stable output, accurate layer thickness, and consistent product quality.
Typical Applications
1. Multi-Layer Insulated Wires and Power Cables
Used for producing high-quality electrical wires and cables where different materials serve different functions:
-
Inner insulation layer
-
Outer sheath or protective layer
-
Color coding layer
Applicable materials include PVC, PE, XLPE, and LSZH/LSHF, meeting various electrical and safety standards.
2. Composite Plastic Pipes
Suitable for manufacturing multi-layer pipes with enhanced performance:
-
Rigid PVC inner and outer layers
-
Micro-closed pore or foamed middle layer
This structure provides improved sound insulation, thermal insulation, impact resistance, and reduced material consumption.
Advantages of 80+60+50mm Co-Extrusion Line
-
High flexibility for multi-material and multi-color extrusion
-
Precise layer thickness control
-
Improved product performance and material efficiency
-
Suitable for continuous, high-output industrial production
-
Ideal for export-oriented manufacturers targeting European and North American markets
Technical Specifications
| Item | Specification |
|---|---|
| Extruder Configuration | 80mm + 60mm + 50mm |
| Extrusion Type | Three-layer co-extrusion |
| Applicable Products | Multi-layer wire, cable, composite extrusion |
| Applicable Materials | PVC / PE / XLPE / LSZH |
| Control System | PLC + Touch Screen |
| Temperature Control | Independent multi-zone temperature control |
| Line Speed | Up to 300 m/min (depending on product) |
| Layer Structure | 2-layer or 3-layer co-extrusion |
| Power Supply | AC 380V / 50Hz / 3 Phase |
| Cooling Method | Water cooling trough |
| Diameter Control | Optional laser diameter gauge |
| Spark Test | Optional |
| Machine Condition | Brand New |
| Warranty | 12 Months |
