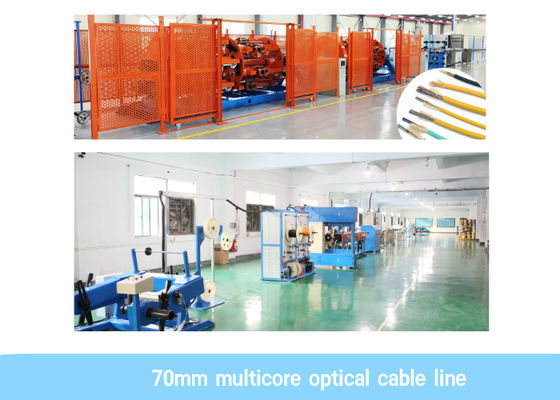

Multicore Indoor Fiber Optic Cable Machine(Cage stranding type)
Product Details:
| Place of Origin: | China |
| Brand Name: | I-suntop |
| Certification: | SGS |
| Model Number: | I-70 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | By negotiation |
| Packaging Details: | Plastic film+wooden box |
| Delivery Time: | Min.50working days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Up to different machine |
|
Detail Information |
|||
| Application: | Extruding | Name: | Distribution/Breakout Fiber Optic Cable Extrusion Machine |
|---|---|---|---|
| Outer Cable Size: | Max.11.5mm | Structure Speed: | Max.120m/min |
| No Of Pay Off: | 4/6/12/24 | Excess Loss After Extrusion: | 1550nm<=0.02dB/km(single Mold Optical Fiber) |
| Warranty: | 18month | Voltage: | 3-phase 5wire 380V 50-60HZ |
| High Light: | Multicore Fiber Optic Cable Machine,Indoor Fiber Optic Cable Machine,Cage Stranding Type Fiber Optic Cable Sheathing Line |
||
Product Description
Fiber Optic Cable Machine For Distribution/Breakout Cable Sheathing
i-suntop fiber optic cable machine 20220228.pdf
1.Description for Fiber Optic Cable Machine For Distribution/Breakout Cable Sheathing:
This fiber optic cable making machine sheathes indoor /outdoor disctribution multi cores optical cable, tactical fiber cable with PVC, LSZH, PE jacket, outer diameter is 11.5mm max..
2.Main specification of Fiber Optic Cable Machine For Distribution/Breakout Cable Sheathing:
| Machine type | 70×25 Extruder |
| Suitable extrusion material | LSZH,PVC,PE |
| Design speed | Max.120m/min |
| No of cage stranding machine | 12/24 reels |
| Specification of cage stranding machine pay-off reels | 400mm |
| Core wire diameter | 0.6/0.9/2.0 |
| Pay-off tension of tight buffered fiber | 1N-3N |
| Aramid yarn pay off(passive or active optional) | 12/16/24 |
| Take-up reels Specification | PN800 reel and PN1250 reel |
| excess loss after extrusion | 1550nm<=0.02dB/km(single mold optical fiber) |
| Center height of machine | 1000mm from background |
3.Main items for Fiber Optic Cable Machine For Distribution/Breakout Cable Sheathing(Cage stranding type):
| Items | Qty. |
| Φ800-1250 central strength-member pay-off | 1set |
| 12heads cage stranding machine | 2sets |
|
24 heads aramid yarn pay-off (motorized aramid yarn pay-off option available) |
1set |
| Mobile mold supporting | 1set |
| 70 Main extruder | 1set |
| 75kg Dryer +hopper | 1set |
| IPC+PLC control penal | 1set |
| 4m moving water trough and warm water tank | 1set |
| 12m fixed type cooling water trough and cooling water tank+chiller | 1set |
| laser diameter gauge | 1set |
| Accumulator | 1set |
| dual-wheel capstan | 1set |
|
φ800 dual-wheel tension unit |
1set |
|
800-1250mm shaftless longmen type take-up |
1set |
