Pneumatic Traction Device For Fiber Optic Outdoor Cable Sheathing Line
Product Details:
| Place of Origin: | China |
| Brand Name: | I-suntop |
| Certification: | SGS |
| Model Number: | I-500/800/1250 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | By negotiation |
| Packaging Details: | Plastic film+wooden box |
| Delivery Time: | Min.30working days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Up to different machine |
|
Detail Information |
|||
| Application: | For Pulling Cable | Service: | 12month Warranty |
|---|---|---|---|
| Voltage: | 3-phase 5wire 380V 50HZ | Motor Power: | 3-55kw |
| Tractive Force: | 200~15000kg | Speed: | 20-150m/Min |
| Highlight: | Pneumatic cable sheathing machine,Pneumatic Caterpillar Traction Device,150m/Min Caterpillar Traction Device |
||
Product Description
Pneumatic Traction Device for Fiber Optic Outdoor Cable Sheathing Line
The Pneumatic Traction Device is a key auxiliary machine designed for fiber optic and power cable production lines, specifically used in outdoor cable sheathing, insulation extrusion, armoring, and cable forming processes. It provides stable and precise traction to ensure consistent cable quality during continuous production.
This traction unit adopts a flat belt traction structure with pneumatic clamping, delivering uniform pressure and reliable gripping force without damaging the cable surface. With a well-engineered mechanical structure and flexible drive options, it is an ideal solution for modern cable manufacturing plants.
Product Structure & Design
The traction device features a robust frame fabricated from high-quality steel plates through precision bending and welding. Its compact and modern design ensures long-term stability and durability under continuous operation.

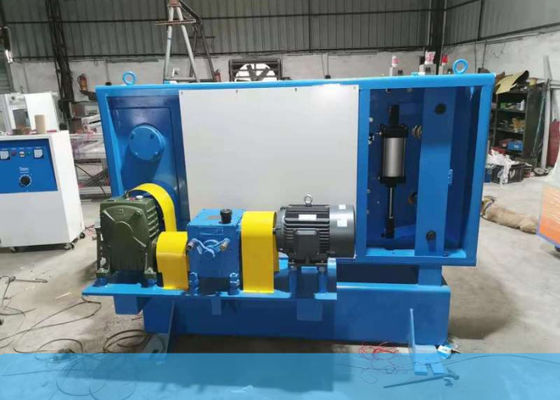

The transmission system consists of a motor-driven reduction gearbox with hardened helical gears, providing smooth power transfer, high load capacity, and low maintenance requirements. Both DC motor speed regulation and variable frequency (VFD) control are available to meet different production demands.
Pneumatic cylinders apply adjustable clamping force to the traction belts, ensuring secure cable pulling while minimizing deformation or abrasion, especially after extrusion and cooling.
Key Features & Advantages
-
Pneumatic Clamping & Flat Belt Traction
Ensures uniform pressure distribution and stable traction for various cable diameters. -
Wide Traction Force Range
Available in multiple models from 200 kg to 15,000 kg, suitable for light to heavy-duty cable production. -
Precise Speed & Tension Control
Equipped with electronic meters to display real-time line speed and meter count. -
Magnetic Powder Tension Control (Optional)
Provides instant tension adjustment, effectively preventing cable abrasion in cooling troughs and ensuring synchronization across the extrusion line. -
Flexible Structural Design
Small models support overall machine movement or upper-frame movement, allowing easy adaptation to special production processes. -
High Reliability & Easy Maintenance
Heavy-duty mechanical components ensure long service life and stable operation.
Applications
-

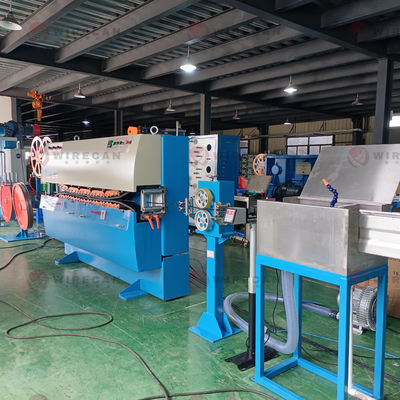

Fiber optic outdoor cable sheathing lines
-
Power cable and control cable extrusion lines
-
Armoring and copper tape shielding lines
-
Cable insulation and jacket extrusion production
-
Cable forming and winding processes
Main Technical Parameters
| Model | Max. Traction Force (kg) | Max. Cable Diameter (mm) | Track Contact Length (mm) | Track Width (mm) | No. of Cylinders (Pairs) | Max. Traction Speed |
|---|---|---|---|---|---|---|
| TQD 300 | 300 | ≤ Ø15 | 390 | 60 | 3 | 200 |

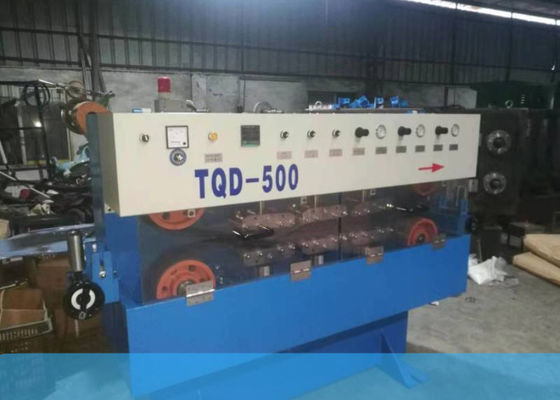

| TQD 500 | 500 | ≤ Ø30 | 850 | 80 | 3 | 150 |

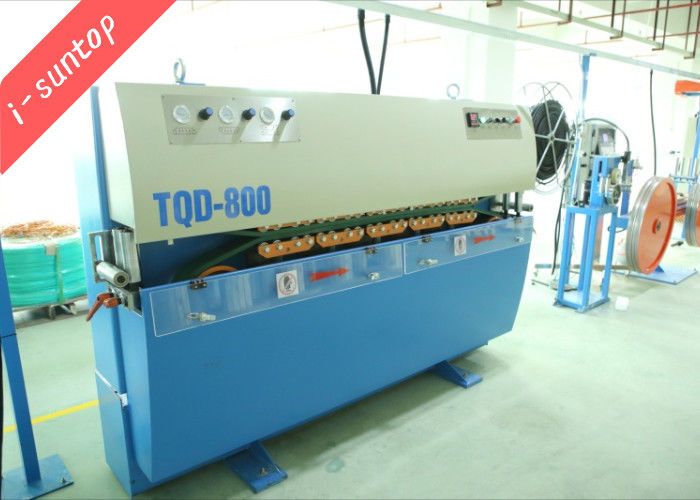

| TQD 800 | 800 | ≤ Ø40 | 1150 | 80 | 4 | 120 |

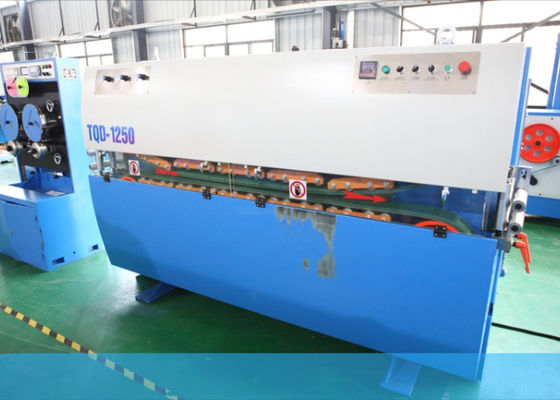

| TQD 1250 | 1250 | ≤ Ø60 | 1600 | 120 | 5 | 100 |
| TQD 1600 | 1600 | ≤ Ø80 | 1900 | 120 | 6 | 80 |
| TQD 2000 | 2000 | ≤ Ø100 | 2300 | 120 | 7 | 80 |
| TQD 2500 | 2500 | ≤ Ø120 | 2500 | 140 | 8 | 60 |
| TQD 3200 | 3200 | ≤ Ø150 | 2800 | 140 | 9 | 60 |
| TQD 4000 | 4000 | ≤ Ø180 | 3500 | 160 | 10 | 30 |
| TQD 5000 | 5000 | ≤ Ø200 | 4000 | 180 | 11 | 30 |
Optional Configurations
-
DC motor or VFD motor speed control
-
Magnetic powder tension control system
-
Ground shaft transmission for armoring and shielding lines
-
Customized traction length and belt width
-
Integration with complete cable extrusion lines
Why Choose This Traction Device
This pneumatic traction device combines strong mechanical performance, precise tension control, and flexible configuration, making it an ideal choice for fiber optic and power cable manufacturers seeking stable, high-quality, and efficient production.
