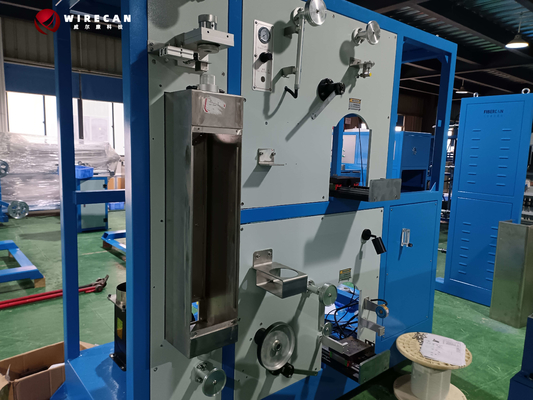

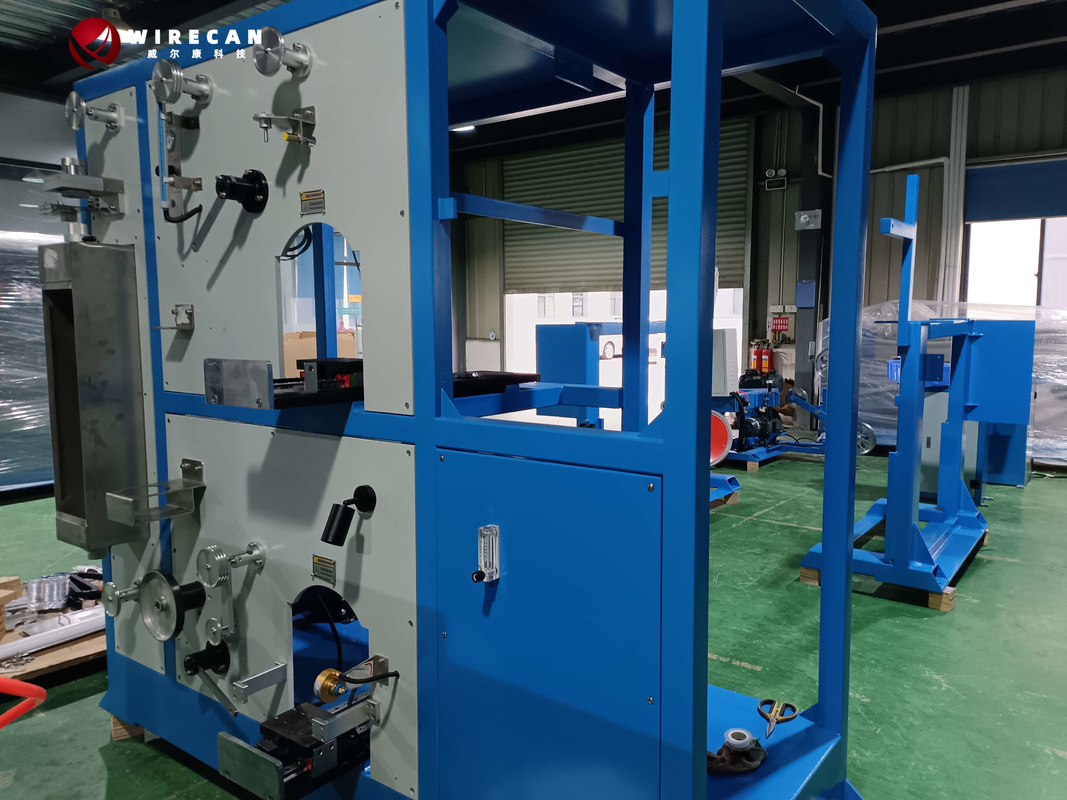

Optical Fiber Coloring Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Wirecan |
| Certification: | ISO9001 |
| Model Number: | WRK-1800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | By negotiation |
| Packaging Details: | Plastic film+wooden box |
| Delivery Time: | Min.50working days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Up to different machine |
|
Detail Information |
|||
| Application: | Optical Fiber Coloring & Rewingding Machine | Main Motor Power: | 7.5kw |
|---|---|---|---|
| Reel Size Of Pay-off: | 250 | Reel Size Of Take-up: | 250 |
| Service: | 1 Year Free | Control System: | PLC+touch Screen |
Product Description
| Feature | Description |
|---|---|
| Purpose | To color optical fibers for use in communication systems |
| Types | Continuous fiber coloring equipment |
| Working principle | Optical fiber is passed through a coloring solution |
| The solution penetrates the fiber, resulting in coloration | |
| Advantages | Precise control over color consistency |
| High throughput capability | |
| Improved fiber performance due to reduced micro bending loss | |
| Reduced inventory and production costs |
1, Equipment application :
The optical fiber coloring and rewinding machine is mainly applied for coloring the surface of optic fibers, convenient to identify the multi-fibers within the loose tube. Also can be used to rewind fibers and coat the nylon-tightened fibers with silicone gel.
2, features:
a main function: coloring the surface of optic fibers
b, auxiliary function: rewinding the optic fiber
c, the machine uses an PLC+touch screen control system, main electric parts are imported,
d, high production efficiency, and convenient operation.
3, Equipment application:
| No optical fiber | 1 piece |
| Coloring speed | 1000-1200m/min or 1500-1600m/min |
| Structure speed | L1500m/min or 1800m/min |
| Rewinding speed | <=1500n/min or 1800m/min |
| Coloring layer thickness | 3-5um |
| Pay-off tension | 0.4N-1.2N±0.05N |
| Traversing pitch | 0.2-1.5mm |
| Excess loss after coloring | <=0.02db/km |
| Optical fiber reel size(MAX) | ø350×ø25.4×ø300mm,weight:5kg(25km/50km reel) |
- An optical fiber coloring machine is a device used in the production of optical fibers to apply color coding to the fibers. This is important for identifying individual fibers in a cable or bundle, and for ensuring that fibers are properly connected and routed during installation and maintenance.
- The coloring process typically involves applying a colored coating to the surface of the fiber. This coating may be applied using a variety of techniques, such as inkjet printing, electrostatic deposition, or spray coating.
- The coloring machine may include a range of components, such as a fiber pay-off system, a coloring unit, and a fiber take-up system. The fiber pay-off system feeds the optical fibers into the machine, while the coloring unit applies the color coding to the fibers. The fiber take-up system collects the colored fibers and prepares them for further processing or packaging.
- The machine may also include a control system that regulates the application of the coloring material, ensuring that the coloring is consistent and meets the required specifications. Other features may include sensors for detecting fiber breaks or other defects, as well as mechanisms for cleaning or maintaining the machine.
- Overall, the optical fiber coloring machine is a critical component in the production of optical fibers, helping to ensure that fibers are properly identified and connected in a range of applications, from telecommunications to medical devices.
