IEC-60794-1-2 Standard Fiber Optic Cable Winding Test Equipment

IEC-60794-1-2 Standard Fiber Optic Cable Winding Test Equipment

Product Details:

Place of Origin: China
Brand Name: I-suntop
Certification: SGS
Model Number: GFK-300

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: By negotiation
Packaging Details: Plastic film+wooden box
Delivery Time: Min.50working days
Payment Terms: L/C,T/T
Supply Ability: Up to different machine
Get Best Price Contact Now

Detail Information

Item: Fiber Optic Cable Winding Test Equipment Application: Fiber Optic Cable Testing
Diameter Of Driving Wheel: 200mm And 300mm Winding Speed: 20 Turns/min
Winding Turns: Set Arbitrarily Between 2~10 Turns. N Turns Forward And N Turns Reverse Count As Once. N Is The Specified Value For Turns Winding Counts: 1~9999, Set Arbitrarily
Standards: IEC60794-1-2 Counterweight Bracket: 5kg
Highlight:

20 turns/min Cable Winding Test Equipment

,

800W Cable Winding Test Equipment

Product Description

IEC-60794-1-2 Standard Fiber Optic Cable Winding Test Equipment

I-suntop Optical cable mechanical testing equipmen...

1. Usage of IEC-60794-1-2 Standard Fiber Optic Cable Winding Test Equipment:

This equipment is suitable for testing optical cable or optical cable components to withstand the winding capacity around the heart axis, by applying repeated winding force, for qualified optical cable requirements optical fiber does not break, optical fiber attenuation change does not exceed the value specified in the detailed specification of optical cable products, optical cable sheath does not crack.

2. Specifications of IEC-60794-1-2 Standard Fiber Optic Cable Winding Test Equipment:

Item spec.

Product model

GFK-300

Diameter of driving wheel

1000mm

Winding speed

20 turns/min

Winding turns

set arbitrarily between 2~10 turns. n turns forward and n turns reverse count as once. n is the specified value for turns

Winding counts

1~9999, set arbitrarily

Counterweight bracket

5kg

Counterweight

5kg×4, 2.5kg×1

Equipment weight

About 450kg

3. Factory Installation requirements of IEC-60794-1-2 Standard Fiber Optic Cable Winding Test Equipment:

  • Host power supply: single phase, AC220V±10%, 50~60Hz, 0.8kW
  • Install onto a stable base, levelness≤0.5/1000, and room of more than 1 m around.
  • Ambient temperature: 25℃±10℃, humidity: ≤80% non-condensing.
  • No vibrating or corrosive media indoor

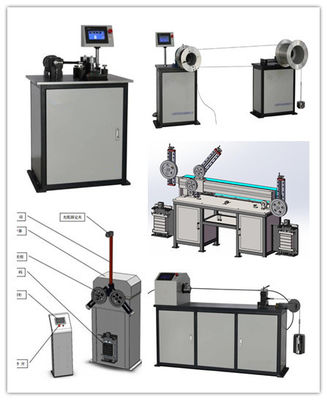

4. Other Fiber optic cable test equipment

A. Computer controlled optical cable tension testing machine

B. Optical cable crush testing machine

C. Optical cable impact testing machine

D. Optical cable repeated bending testing machine

E. Optical cable torsion testing machine (Apply to outside cable)

F. Optical cable flexing testing machine

G. Optical cable abrasion testing machine

H. Optical cable water penetration testing machine
