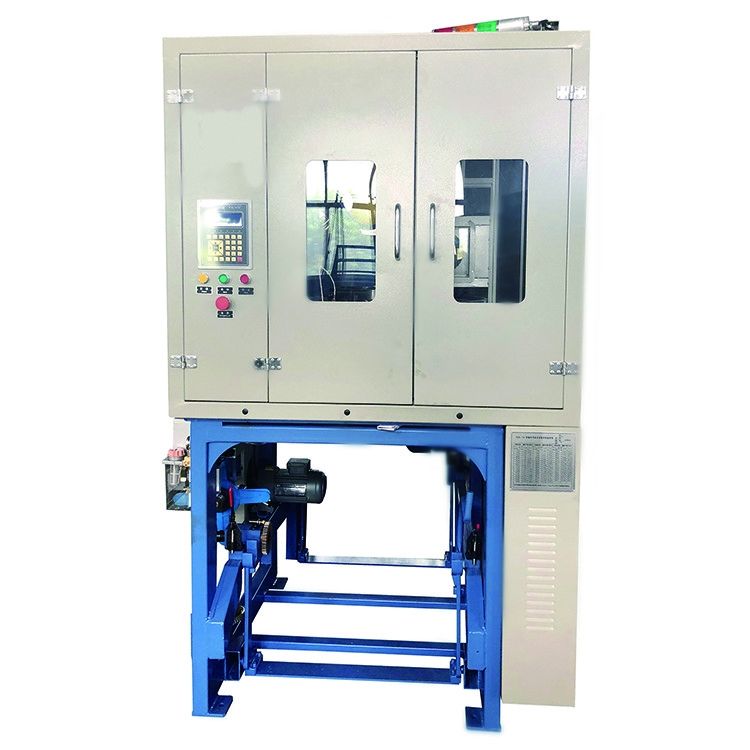

SGS High Speed 130r/Min Double Layer Cable Braiding Machine Vertical Type
Product Details:
| Place of Origin: | china |
| Brand Name: | I-SUNTOP |
| Certification: | SGS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | By negotiation |
| Packaging Details: | Plastic film+wooden box |
| Delivery Time: | Min.30working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | Up to different machine |
|
Detail Information |
|||
| Power: | AC220V | Weight: | 680kg |
|---|---|---|---|
| Size: | 1500*1800*2300mm | Interface Type: | FC |
| High Light: | 130r/min cable braiding machine,SGS double layer cable braiding machine,SGS high speed braiding machine |
||
Product Description
High Speed Double Layer Cable Braiding Machine
i-suntop Electric wire and cable equipments2022022...
1. Description of High Speed Double Layer Cable braiding machine
I. Long running times due to big bobbin volume
II. longevity thanks to oil bath construction
III. Reduce yarn waste due to auto stop system
IV. High output
2. Features for High Speed Double Layer Cable braiding machine
-
It is east to make different size of products by changing the pitch gears.
-
Adopting frequency control motor which is easy to control the speed
-
Well designed auto stop system has a sensitive reaction, when the yarn is over or breaks, the machine will stop automatically, which reduce the waste of the yarn. So when there is nobody works near the machine,it is also safe. This device lower the labor cost and increase the production.
3. Technical of High Speed Double Layer Cable braiding machine
| No. | Name | Unit | Technique data | Technique data |
| 16AS | 24A | |||
| 1 | Braiding type | over | 2×2 | 2*2 |
| 2 | Braiding direction | Vertical | Vertical | |
| 3 | The volume of upper spindle | piece | 16 | 12 |
| The volume of lower spindle | piece | 16 | 12 | |
| 4 | Material of braiding silk | Aluminum-magnesium alloy wire, glass wire, copper wire, stainless steel wire, polyester yarn | Aluminum-magnesium alloy wire, glass wire, copper wire, stainless steel wire, polyester yarn | |
| 5 | Spindles Size | Dia 75 * Dia 22* Dia100 | Dia75*Dia22*Dia70 | |
| 6 | Spindle Speed | 10-130RPM | 15-100RPM | |
| 7 | Pitch Range | 0-100mm | 13.3-134.5mm | |
| 8 | Max.Braiding Wire Dia | 2*0.08-8*0.16 | Dia 24mm | |
| 9 | Host power | kw | 3 | 3 |
| 10 | Dimension | 1800× 1540× 2400mm (L × W × H) | 1500× 1800× 2350mm (L × W × H) |
