16 Spindle High Speed Cable Braiding Machine With Cover

16 Spindle High Speed Cable Braiding Machine With Cover

Product Details:

Place of Origin: China
Brand Name: I-suntop
Certification: SGS
Model Number: GF-16

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: By negotiation
Packaging Details: Plastic film+wooden box
Delivery Time: Min.30working days
Payment Terms: L/C,T/T
Supply Ability: Up to different machine
Get Best Price Contact Now

Detail Information

Application: Soft Copper Copper Wire, Tinned Copper , Nickel Plated Copper , Silver Plated Copper , Stainless Steel ...all Soft Annealed . Capacity: About 5m/min
Voltage: 1.1KW,220V/50Hz Warranty: 1 Year
Rotation Speed: Max.180RPM
High Light:

50Hz wire harness braiding machine

,

16 carrier wire harness braiding machine

,

16 carrier rope braider

Product Description

1.1KW 180RPM 16 Spindle High Speed Cable Braiding Machine With Cover

i-suntop Electric wire and cable equipments2022022...

1. Usage for 1.1KW 180RPM 16 Spindle High Speed Cable Braiding Machine With Cover

High-speed Braiding Machine offers a solution for the requirements of high-speed broadband networks for high-quality coaxial cables. The braiding machine is especially suitable for braiding high-quality computer cables, network cables (Cable 6 and 7), and advanced audio cables.

2. Description for 1.1KW 180RPM 16 Spindle High Speed Cable Braiding Machine With Cover

This machine involves an advanced programmable controller, frequency control technologies, and a touch screen. It features stepless speed regulation, high braiding speed, fault display, low noise, high reliability, high precision, and high intensity. It incorporates a specific breading method, with the spindle equipped with an automatic tension-control mechanism, an automatic lubrication system, and a muffler shield. The machine is used not only for breading copper wires, but also for metal wires like aluminum-magnesium alloy wires and stainless steel wires. The spindle has the largest capacity of 1.5 kg for copper among all the breading machines. In contrast to other models, no spring is needed to change while the type and size of breading wire is different. Only adjustment of spring tension is required.

3. Specification for 1.1KW 180RPM 16 Spindle High Speed Cable Braiding Machine With Cover

type 16 carrier high speed braider with cover
Overall diameter of the wires to be braided Max Φ14mm
Number of strands per carrier Φ0.25mm(1-7) Φ0.15mm(1-13) Φ0.12mm(2-13)
Φ0.08mm(3-13) Φ0.05mm(4-13)
Rotation of the main machine Max 180RPM (the general speed is 150 RPM)
Pitch regulation The pitch may be regulated with steps by transposing dears between 5.35 and 63.5mm.
Motor for the main machine 380V 1.1KW
Reel size Φ800mm*600mm
take-up and pay-off spindle hole Φ>38mm≤80mm

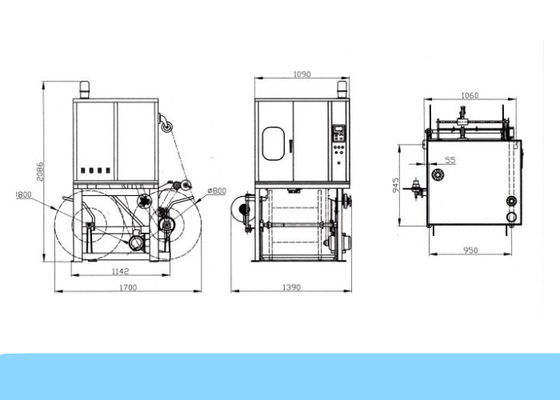

4.Layout for 1.1KW 180RPM 16 Spindle High Speed Cable Braiding Machine With Cover

16 Spindle High Speed Cable Braiding Machine With Cover 0
