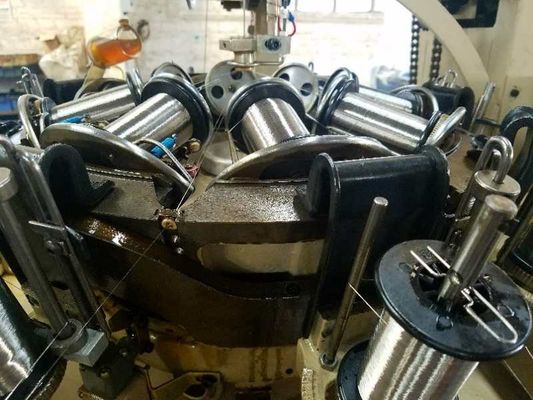

16 Spiddles Braiding Machine For Coaxial Cable / Lan Cable
Product Details:
| Place of Origin: | China |
| Brand Name: | I-suntop |
| Certification: | SGS |
| Model Number: | GF-16 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | By negotiation |
| Packaging Details: | Plastic film+wooden box |
| Delivery Time: | Min.30working days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Up to different machine |
|
Detail Information |
|||
| Application: | For Coaxial Cable/Lan Cable | After-sales Service: | Video Technical Support, Free Spare Parts, Field Installation |
|---|---|---|---|
| Power: | 1.1KW,220V/50Hz | Speed: | About 5m/min |
| Warranty: | 1 Year | Suitable: | Soft Copper Copper Wire, Tinned Copper , Nickel Plated Copper , Silver Plated Copper , Stainless Steel ...all Soft Annealed . |
| Highlight: | 16 Spiddles Braiding Machine,Coaxial Cable Braiding Machine,Lan Cable Braiding Machine |
||
Product Description
16 Spiddles Braiding Machine For Coaxial Cable/Lan cable
i-suntop Electric wire and cable equipments2022022...
1. Application for 16 Spiddles Braiding Machine For Coaxial Cable/Lan cable
It is used to braid cable soft shield layer like copper wire, soft iron wire, low carbon steel wire, al-mg alloy etc.
2. Specification for 16 Spiddles Braiding Machine For Coaxial Cable/Lan cable
| type | 16 carrier high speed braider with cover |
| Max.braided diameter | Φ14mm |
| Number of strands per spiddle | Φ0.25mm(1-7) Φ0.15mm(1-13) Φ0.12mm(2-13) Φ0.08mm(3-13) Φ0.05mm(4-13) |
| Max Rotation speed | 180RPM (the general speed is 150 RPM) |
| Pitch | The pitch may be regulated with steps by transposing dears between 5.35 and 63.5mm. |
| Motor for the main machine | 380V 1.1KW |
| Take up Reel size | Φ800mm*600mm |
| take-up and pay-off spindle hole | Φ>38mm≤80mm |
3. Our service
24hours online service, engineers with passport service overseas.
It’s the after-sales support that makes delivery complete”.
① Since the shipment date, our company free after sale maintenance service guarantee period is: 12 months
② Our company provides long term spare supply, technical support and maintenance service for the machine, but we will charge for travel fee.
We guarantee when we get the information of the customer, our engineers will analyze immediately, then response as soon as possible, if need our engineers come, 24hour will be arrived inland, and one week oversea.
It’s the after-sales support that makes delivery complete”.
① Since the shipment date, our company free after sale maintenance service guarantee period is: 12 months
② Our company provides long term spare supply, technical support and maintenance service for the machine, but we will charge for travel fee.
We guarantee when we get the information of the customer, our engineers will analyze immediately, then response as soon as possible, if need our engineers come, 24hour will be arrived inland, and one week oversea.
