12 Core FTTH Round Drop 190m/Min LSZH Fiber Optic Cable Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | I-suntop |
| Certification: | SGS |
| Model Number: | I-50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | By negotiation |
| Packaging Details: | Plastic film+wooden box |
| Delivery Time: | Min.30working days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Up to different machine |
|
Detail Information |
|||
| Material: | PVC/LSZH | Desgin Speed: | Max.190m/min |
|---|---|---|---|
| No Of Fiber: | 12 | Excess Loss After Extrusion: | 0.02dB/km(single Mold Optical Fiber) |
| Usage: | Manufacturing Of 12 Core FTTH Round Drop Cable | Warranty: | 12month |
| Voltage: | 3-phase 5wire 380V 50HZ | System: | PLC+IPC Control |
| Highlight: | 190m/min fiber optic cable machine,LSZH fiber optic cable machine |
||
Product Description
12 Core FTTH Round Drop Fiber Optic Cable Machine Production Line
i-suntop fiber optic cable machine 20220228.pdf
1. Description for 12 Core FTTH Round Drop Fiber Optic Cable Machine Production Line:
It used to produce 2-12cores mini cable,and extrusion material is LSZH or PVC.
2. Machine main electric brand for 12 Core FTTH Round Drop Fiber Optic Cable Machine Production Line:
Motor: dongguan Motor
Transducer: inovance transducer
Temperature controller: Omron Brand PID Smart type
Man-Machine interface: 10.2 inch color
PLC and Control Module: Siemens
Screw and Barrel: Produced by jinhu Company.
Bearing: Japan NSK or other same quality brand
Low voltage electrical parts: Adopts SIEMENS, OMRON, SCHNEIDER brands,etc.
3. Technical parameters of 12 Core FTTH Round Drop Fiber Optic Cable Machine Production Line :
|
Extruder type |
50×25 Extruder |
|
extrusion material |
LSZH,PVC |
|
structure speed |
Max.150m/min |
|
production speed |
Up to different cable diamter |
|
No of optical fiber pay-off reels |
12 or 24 reels |
|
Specification of optical fiber pay-off reels |
25km and 50km standard optical fiber reels |
|
Pay-off tension of optical fiber |
0.4N-1.5N |
|
Heads no of reinforcement pay-off rack |
1head |
|
Specification of reinforcement pay-off reels |
PN400 reels and ø254×ø116×ø180×ø32 reels |
|
reinforcement Specification |
ø0.4-ø1.0 |
|
Pay-off tension of reinforcement |
5N-20N |
|
Take-up tension |
5-15N |
|
Take-up reels Specification |
PN400 reel and PN630 reel(central shaft hole diameter ø 56) |
|
excess loss after extrusion |
1550nm<=0.2dB/km(single mold optical fiber) |
|
Center height of machine |
1000mm from background |
4.Line Configuration for 12 Core FTTH Round Drop Fiber Optic Cable Machine Production Line:
|
Items |
Qty. |
|
12heads fiber pay-off |
1set |
|
Mobile mold supporting |
1set |
|
50 extruder |
1set |
|
Dryer +hopper |
1set |
|
IPC+PLC program control systerm |
1set |
|
moving water trough and warm water tank |
1set |
|
fixed type cooling water trough and cooling water tank |
1set |
|
laser diameter gauge |
1set |
|
dual-wheel capstan |
1set |
|
cable accumulator |
1set |
|

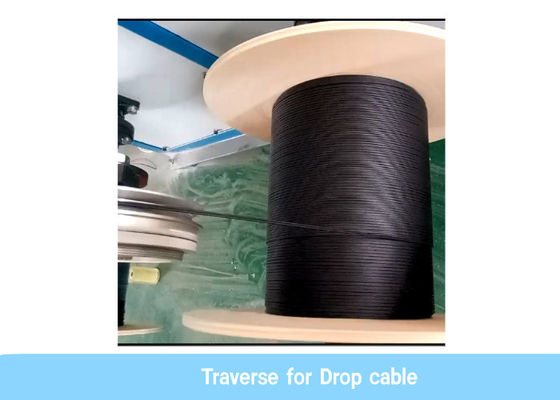

dual-shaft take-up |
1set |
