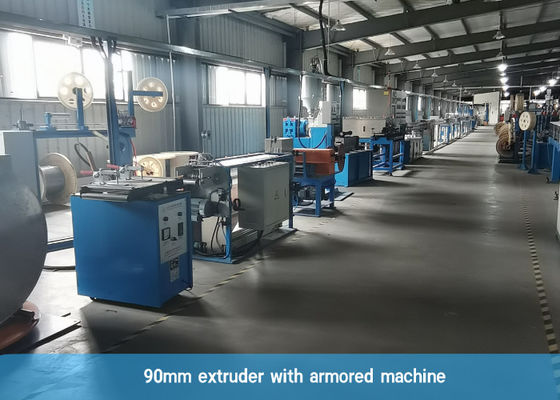

144 Core Fiber Optic Cable Extrusion Machine With Armour Sheathing
Product Details:
| Place of Origin: | China |
| Brand Name: | I-suntop |
| Certification: | SGS |
| Model Number: | I-90 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | By negotiation |
| Packaging Details: | Plastic film+wooden box |
| Delivery Time: | Min.50working days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Up to different machine |
|
Detail Information |
|||
| Application: | Extrusion For Burial/Aerial Fiber Optic Cable | Material: | PVC/PE |
|---|---|---|---|
| Output (kg/h): | 280 Kg/h | Structure Speed: | Max.100m/min |
| Sheath Outer Diameter: | 6.0mm-35.0mm | Cable Core Diameter: | 4.2mm-30mm |
| Service: | 12month Warranty | Voltage: | 3-phase 5wire 380V 50HZ |
| Highlight: | 144 core cable extrusion machine,280kg/h cable extrusion machine,144 core fiber optic cable machine |
||
Product Description
144 Core Direct Burial/Aerial Fiber Optic Cable Machine With Armour Sheathing
i-suntop fiber optic cable machine 20220228.pdf
1. Application for 144 Core Direct Burial/Aerial Fiber Optic Cable Machine With Armour Sheathing:
Fiber optic cable sheathing line is designed for extruding cable inner sheath and outer sheath. It is suitable to extrude LDPE, MDPE, HDPE, PVC, LSZH, PU etc. to produce different structural forms of fiber optic cable, such as ADSS, GYTY, GYTS, GYTA, GYXT, GYXTW, GYFTY, GYFTA, GYTY53, GYTA53, GYTS53, ETC..
2. Specification for Main items of 144 Core Direct Burial/Aerial Fiber Optic Cable Machine With Armour Sheathing:
|
Diameter of cable core |
4.2-30mm |
|
Diameter of loose tube |
1.8-4mm |
|
Diameter of cable |
6-35mm |
|
Thickness of cable wall |
1.0-3.0mm |
|
Line structure speed |
100m/min |
|
Line production speed |
80m/min(cable dia:10mm) |
|
Additional attenuation |
0.02dB/km (1310and 1550) |
|
Extruder output |
Max280kg/h |
3. Main items for 144 Core Direct Burial/Aerial Fiber Optic Cable Machine With Armour Sheathing:
|
Items |
Qty. |
|
800-1600mm Cable core pay-off |
1set |
|
Φ800 tension unit |
1set |
|
Cable jelly filling device |
1set |
|
Water blocking tape pay off |
1set |
|
Dual wheels steel / aluminium tape pay-off |
1set |
|
Steel /aluminum tape accumulator |
1set |
|
On-line seam welding device (Steel & Aluminum tape) |
1set |
|
Metal tape (Steel-Aluminum tape) corrugating device |
1set |
|
Metal tape (Steel-Aluminum tape) longitudinal forming device |
1set |
|

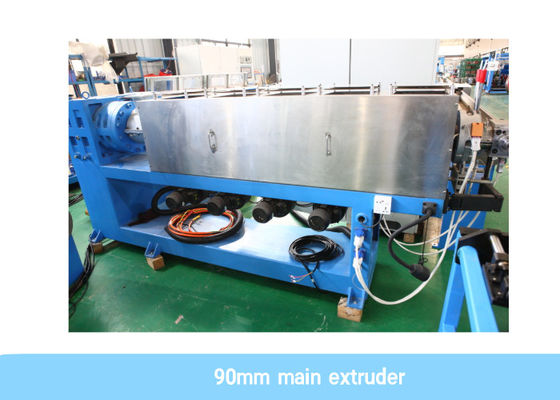

Φ90 extruder |
1set |
|
100KG Dryer machine and automatic hopper |
1set |
|
IPC+PLC program electricity control cabinet |
1set |
|
4m Stainless steel warm water trough and water tank |
1set |
|
16m Single-layer U-type stainless steel cooling water trough(with dryer and silencer device) |
1set |
|
Diameter laser gauge |
1set |
|
Spark machine |
1set |
|
Caterpillar type capstan machine |
1set |
|
Take up tension unit |
1set |
|
800-1600mm Take up machine |
1set |
