8time/Min Cable Hook Test Equipment , Outdoor Fiber Optic Cable Test Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | I-suntop |
| Certification: | SGS |
| Model Number: | GFKA-100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | By negotiation |
| Packaging Details: | Plastic film+wooden box |
| Delivery Time: | Min.50working days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Up to different machine |
|
Detail Information |
|||
| Item: | Fiber Optic Cablea Hook Test Equipment | Application: | Fiber Optic Cable Testing |
|---|---|---|---|
| Hook Height: | 100mm | Test Number Setting Range: | 1～9999 |
| Rate: | 8time/min | Sample Suspension Span: | 4.5m，drape Factor :300mm |
| Standards: | IEC60794-1-2 | Heavy Hammer Weight: | 3Kg、4Kg、5Kg、6Kg、7Kg |
| Highlight: | 8time/min Cable Hook Test Equipment,Outdoor Cable Hook Test Equipment,Outdoor Fiber Optic Cable Test Equipment |
||
Product Description
IEC-60794-1-2 Standard Outdoor Fiber Optic Cable Hook Test Equipment
I-suntop Optical cable mechanical testing equipmen...
1. Usage of IEC-60794-1-2 Standard Outdoor Fiber Optic Cable Hook Test Equipment:
This equipment is suitable for impact resistance hookup test of overhead optical cable,including type test (or routine test) and delivery test (or delivery test) to determine the ability of optical cable to withstand sudden hookup.
2. Specifications of IEC-60794-1-2 Standard Outdoor Fiber Optic Cable Hook Test Equipment:
| Item | spec. |
|
Product model |
GFKA-100 |
|
Hook height
|
100mm
|
|
Test number setting range
|
1～9999
|
|
Rate
|
8time/min
|
|
Sample suspension span
|
4.5m,drape factor :300mm
|
|
Heavy hammer weight
|
3Kg,4Kg,5Kg,6Kg,7Kg |
|
Power requirement |
Three-phase four wire,50Hz,0.2KW
|
3. Factory Installation requirements of IEC-60794-1-2 Standard Outdoor Fiber Optic Cable Hook Test Equipment:
- Host power supply: single phase, AC220V±10%, 50～60Hz, 0.2kW
- Install onto a stable base, levelness≤0.5/1000, and room of more than 1 m around.
- Ambient temperature: 10℃±40℃, humidity: ≤80% non-condensing.
- No vibrating or corrosive media indoor

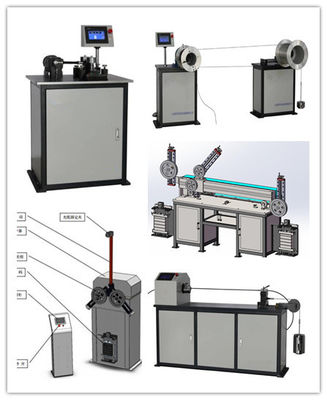

4. Other Fiber optic cable test equipment
A. Computer controlled optical cable tension testing machine
B. Optical cable crush testing machine
C. Optical cable impact testing machine
D. Optical cable repeated bending testing machine
E. Optical cable torsion testing machine (Apply to outside cable)
F. Optical cable flexing testing machine
G. Optical cable abrasion testing machine
H. Optical cable water penetration testing machine
