4000rpm Single Drum Concentric Cross Binder With 2kw Servo Motor
Product Details:
| Place of Origin: | China |
| Brand Name: | I-suntop |
| Certification: | SGS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | By negotiation |
| Packaging Details: | Plastic film+wooden box |
| Delivery Time: | Min.30working days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Up to different machine |
|
Detail Information |
|||
| Application: | For Loose Tuber Binder | Motor: | 2kw Servo Motor |
|---|---|---|---|
| Service: | 12month Warranty | Voltage: | 3-phase 5wire 380V 50HZ |
| Structure Speed: | 4000rpm | Bobbin Head: | 2 |
| High Light: | single drum concentric cross binder,4000rpm concentric cross binder |
||
Product Description

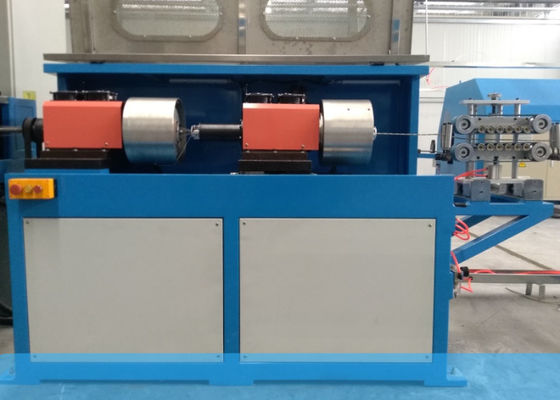

Double/Single Drum Concentric Type Cross-Binder (Torsion Device)
i-suntop fiber optic cable machine 20220228.pdf
1. Structure for Double/Single Drum Concentric Type Cross-Binder (Torsion Device):
Adopt AC servo motor control the yarn way,Main frame adopt 2KW AC SERVO motor control,tension control by 1KW servo motor
Have emergency stop function,the tension can adjust
2. Specification for Double/Single Drum Concentric Type Cross-Binder (Torsion Device):
A. Double-drum concentric type cross-binder (torsion device)
Adopt AC servo motor control the yarn way,Main frame adopt 2KW AC SERVO motor control,tension control by 1KW servo motor.Have emergency stop function,the tension can adjust
- Center of the height 1000 mm
- Yarn bobbin size Ф200×Ф94×170mm(D×ｄ×L)
- Spare Yarn tool 1pcs
- Yarn tension 2～10N
- Structure speed 4000rpm
C. single-drum concentric type cross-binder (torsion device)
Adopt AC servo motor control the yarn way,Main frame adopt 2KW AC SERVO motor control,tension control by 1KW servo motor ,Have emergency stop function,the tension can adjust
- Center of the height 1000 mm
- Yarn bobbin size Ф200×Ф94×170mm(D×ｄ×L)
- Spare Yarn tool 1pcs
- Yarn tension 2～10N
- Structure speed 4000rpm
3. Main paramters for Double/Single Drum Concentric Type Cross-Binder (Torsion Device):
|
Center of the height |
1000 mm |
|
Yarn bobbin size |
Ф200×Ф94×170mm(D×ｄ×L) |
|
Spare Yarn tool |
1pcs |
|
Yarn tension |
2～10N |
|
Structure speed |
4000rpm |
