300mm 2HP 2200W Copper Wire Twisting Machine Automatic Stop Device
Product Details:
| Place of Origin: | China |
| Brand Name: | I-suntop |
| Certification: | SGS |
| Model Number: | GF-300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | By negotiation |
| Packaging Details: | Plastic film+wooden box |
| Delivery Time: | Min.30working days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Up to different machine |
|
Detail Information |
|||
| Usage: | Stranding | Voltage: | 3phase 5 Wire 380V,50HZ |
|---|---|---|---|
| Warranty: | 12 Months | Material: | Copper Wire Or Aluminum Wire |
| Power: | 2.2KW | Twist Wire Number: | More Than 7wires |
| High Light: | 2HP automatic twisting machine,2200W copper wire twisting machine,2200W copper wire twisting machine |
||
Product Description
300mm Automatic Double Twist Bare Copper Wire Bunching Machine
i-suntop Electric wire and cable equipments2022022...
1. Application for 300mm Automatic Double Twist Bare Copper Wire Bunching Machine :
For bunching bare copper, tinned wire, enameled wire(7 wires one time at least)
2. Technical parameters for 300mm Automatic Double Twist Bare Copper Wire Bunching Machine:
| Machine type | GF-300 |
| Single wire diameter | Φ0.05-0.14mm |
| Stranding cross-section area | 0.005-0.035mm2 |
| Stranding pitch | 1.9-17mm |
| Volume of loading copper(Max.) | 30kg |
| Twist arch speed(Max.) | 3000-4000rpm/min |
| Stranding direction | S/Z left or right free option |
| Automatic stop | 1. Automatic brake for inside and outside wire broken |
| 2. Automatic meter-counting send signal to inform when set meter is reached | |
| Bearing | Main bearings from Sweden, subsidiary bearings from Japan |
| Main motor power | 2HP frequency control |
| Noise index | About 70dB |
| Take-up shaft | Φ250mm,Φ300mm |
| Machine size | 1620*880*1200 |
| Machine weight | 950kg |
3. The feature of 300/500/630mm High speed double twist copper wire bunching machine

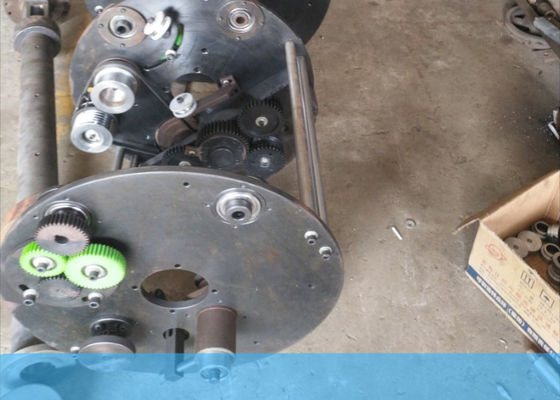

Through the transformation of the traction wheel or gear, and can realize the adjustment of the pitch of strand
Using external induction into the ring gauge meters, good tension, no slippage, and have accurate meter
With internal, external automatic stop device, wire, jumper cases can be automatically shut down
4. Finished product
