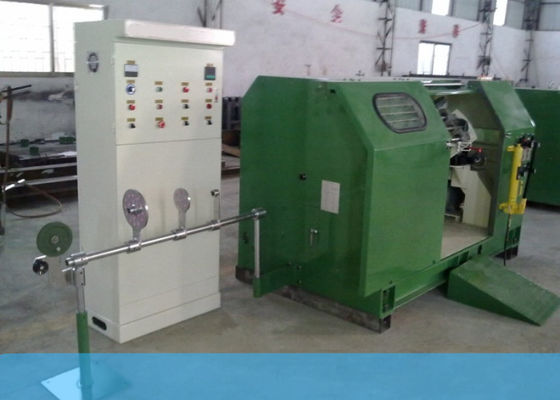

SGS 60HZ Wire Single Twist Bunching Machine Hanging Frame Type

SGS 60HZ Wire Single Twist Bunching Machine Hanging Frame Type

Product Details:

Place of Origin: China
Brand Name: I-suntop
Certification: SGS
Model Number: GF-630/800/1000/1250

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: By negotiation
Packaging Details: Plastic film+wooden box
Delivery Time: Min.50working days
Payment Terms: L/C,T/T
Supply Ability: Up to different machine
Get Best Price Contact Now

Detail Information

Product Name: Frame Type Core Wire Single Twisting Stranding Bunching Machine Wire Range: 0.6-5mm
Control Type: Inverter Control Service: Foreign Installation Training Can Be Provided
Power Supply: 50-60HZ,380V,3phase ,5wire Warranty: 1year
Highlight:

60HZ single twist bunching machine

,

hanging frame type single twist bunching machine

,

hanging frame type wire twister machine

Product Description

630-1250 Hanging Frame Type Core Wire Single Twisting Stranding Bunching Machine

i-suntop Electric wire and cable equipments2022022...

1. Usage for 630-1250 Hanging Frame Type Core Wire Single Twisting Stranding Bunching Machine:

This machine is Applied in the laying-up and stranding of power wire,telecommunications cable, control cable, data cable and other special core-wire, also can synchronously complete center wrapping or side wrapping.

2. Technical parameter for 630-1250 Hanging Frame Type Core Wire Single Twisting Stranding Bunching Machine

Machine type

GF-630

GF-800

GF-1000

GF-1250

Single wire diameter

Φ0.6~3.0mm

Φ0.8~5.0mm

Φ1.0~5.0mm

Φ1.0~5.0mm

Max stranding diameter

Φ15mm

Φ20mm

Φ25mm

Φ30mm

Stranding pitch

10~150mm

20~300mm

20~300mm

20~300mm

Pay off reel specification

Φ400~500mm

Φ400~630mm

Φ400~630mm

Φ400~630mm

Take-up reel specification

Φ630mm

Φ800mm

Φ1000mm

Φ1250mm

Rotation speed

Max.750rpm/min

Max.600rpm/min

Max.500rpm/min

Max.400rpm/min

Brake

Pneumatic / hydraulic disc brake

Stranding direction

S/Z free option

Traverse type

Double direction screw reciprocal traverse

Wrapping way

Center wind-wrapping or side straight- wrapping

SGS 60HZ Wire Single Twist Bunching Machine Hanging Frame Type 0
