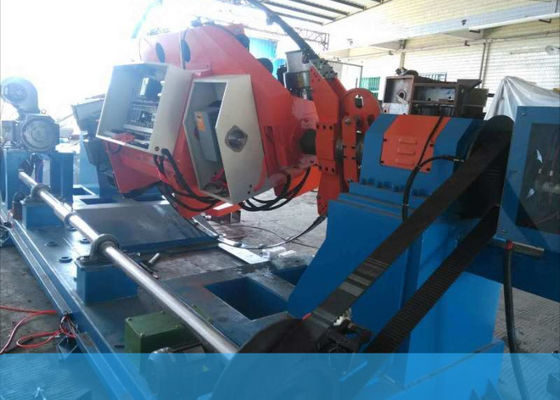

800rpm Wire Bunching Machine , DC Motor 40HP Bow Type Double Twist Buncher
Product Details:
| Place of Origin: | China |
| Brand Name: | I-suntop |
| Certification: | SGS |
| Model Number: | GF-1000mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | By negotiation |
| Packaging Details: | Plastic film+wooden box |
| Delivery Time: | Min.30working days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Up to different machine |
|
Detail Information |
|||
| Usage: | Twisting | Application: | Hard And Soft Copper Or Aluminium Stranded |
|---|---|---|---|
| Warranty: | 18 Months | Twisting Sectional Area: | 1.2-38mm2 |
| Power: | AC380V ±10% 50-60HZ Three-phase Five-wire | Machine Type: | 1000mm |
| Highlight: | 800rpm wire bunching machine,DC motor wire bunching machine,DC motor double twist buncher |
||
Product Description
1000mm 800RPM DC Motor High Speed Bow Type Double Twisting Cable Machine
i-suntop Electric wire and cable equipments2022022...
1. Usage for 1000mm 800RPM DC Motor High Speed Bow Type Double Twisting Cable Machine:
Apply to the hard and soft copper or aluminium stranded, KVV,RVV or cabled telephone wire of more than 4 pairs core wire..
2. Technical parameters for 1000mm 800RPM DC Motor High Speed Bow Type Double Twisting Cable Machine
| Machine type | GF-1000 | GF-1250 |
| Finish stranding wire/(mm) | MAX Φ8.0 | MAX Φ15.0 |
| Stranding sec.area(mm²) | MAX 1.2-38.0 | MAX 3.5-50 |
| Insulated wire individua(mm) | MAX 1.0-2.5 | MAX 1.0-3.5 |
| Max. RPM | 800RPM(1600t/min) | 600RPM(1200t/min) |
| Main motor | 40HP DC Motor | 50HP DC Motor |
| Cintrol system | Parameder controlled by touch and LCD | |
| Bobbin model | Motor-driven, fixed position | |
| Net weight | 9500kg | 11000kg |
