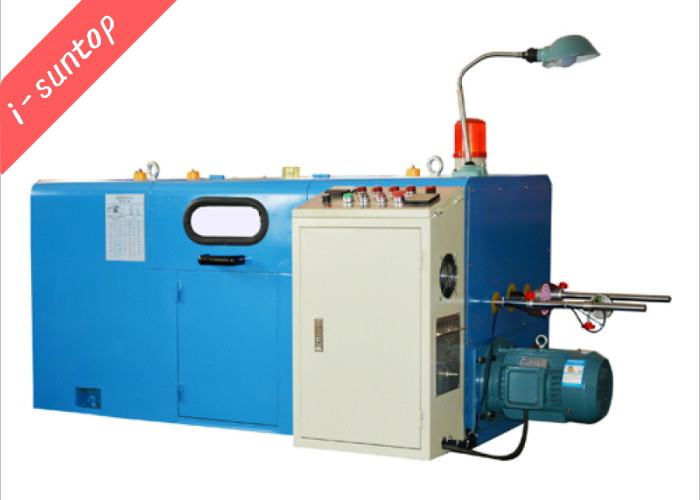

AC380V Copper Wire Double Twist Stranding Machine Bobbin Lift
Product Details:
| Place of Origin: | China |
| Brand Name: | I-suntop |
| Certification: | SGS |
| Model Number: | GF-650mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | By negotiation |
| Packaging Details: | Plastic film+wooden box |
| Delivery Time: | Min.30working days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Up to different machine |
|
Detail Information |
|||
| Product Name: | Wire Cable Twist Bunching Machine | Warranty: | 1year |
|---|---|---|---|
| Pitch Type: | Change Gear To Change Pitch | Power: | 7.5kw ,AC380V ±10% 50-60HZ Three-phase Five-wire |
| Machine Type: | 650mm | Conductor Diamter: | 0.16-1.0mm |
| High Light: | AC380V double twist stranding machine,bobbin lift double twist stranding machine,bobbin lift wire twist machine |
||
Product Description
650mm Wire Cable Twist Bunching Machine Double Twist Stranding Machine
i-suntop Electric wire and cable equipments2022022...
1. Application for 650mm Wire Cable Twist Bunching Machine Double Twist Stranding Machine
650 Double twist bunching machine suitable for more than 7 nos copper wire twisting ,the single wire diamter range is 0.15-1.0mm. Max finished section area will be 10mm2 (usual is 6mm2)
2. Technical parameters for 650mm Wire Cable Twist Bunching Machine Double Twist Stranding Machine
| Model | GF-650 |
| Wire.OD(mm) | Φ0.16-1.0 |
| Twisted pitch(mm²) | 6.0 |
| Twisted pitch(mm) | 5.68-57 |
| Copper weight(kg) | 400 |
| Arch rotating(t/min) | 1800 |
| Twisted direction | S/Z |
| Take-up tension | Friction/clutch |
| Tension control | Spring actuated/automatic |
| Motor power(kw) | 7.5 |
| Machine diameter | 2850*1500*1600 |
| Machine weight | 23000 |
3. The feature of 650mm Wire Cable Twist Bunching Machine Double Twist Stranding Machine
-
PLC+touch screen operating
-
SAFETY FRAME
-
SEASY MAINTENANCE
-
Less noise
-
HIgh Stable running
-
Bobbin lift by electric lift or hydralic (optional)
