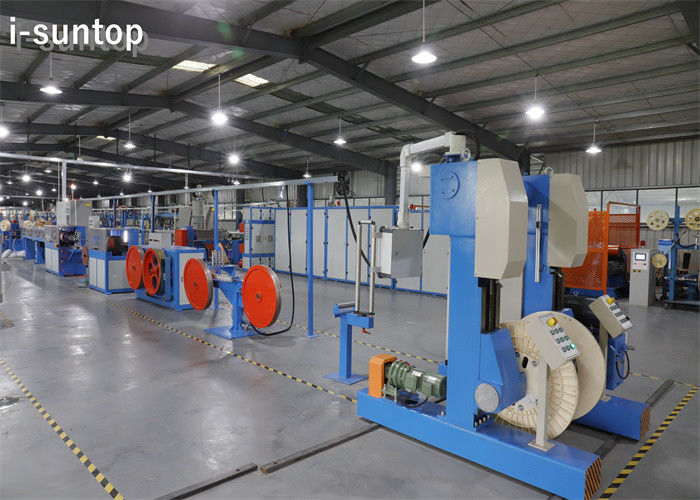

Photoelectric Composite Cable SZ Stranding Line
Product Details:
| Place of Origin: | China |
| Brand Name: | I-suntop |
| Certification: | SGS |
| Model Number: | I-800/12 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | By negotiation |
| Packaging Details: | Plastic film+wooden box |
| Delivery Time: | Min.50working days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Up to different machine |
|
Detail Information |
|||
| Usage: | Manufacturing For Photoelectric Composite Cable | Twisting Material: | Power Wire And FRP |
|---|---|---|---|
| SZ Stranded Maximum Speed: | Max.1800rpm | SZ Stranded Pitch: | 50mm-800mm |
| Production Speed: | Max.30m/min | Warranty: | 1year,longtime Maitenance |
| High Light: | Composite Cable SZ Stranding Line,Photoelectric SZ Stranding Line,1800rpm Stranding Line |
||
Product Description
Photoelectric Composite Cable SZ Stranding Line
i-suntop fiber optic cable machine 20220228.pdf
1. Description for Photoelectric Composite Cable SZ Stranding Line:
The use of fiber-optic cable is continuously increasing. To respond to the various technology requirement, we have developed a wide range production lines. The line is used for SZ stranding of .power wire and FRP
2. Specification of Photoelectric Composite Cable SZ Stranding Line:
|
Maximum diameter of cable core |
ø20mm |
|
Loose tube diameter/quantity |
(Ф2～Ф12.0)mm/8 |
|
pay-off reel specification |
PN800-PN1200 |
|
Take-up reel specification |
PN800-PN1600 |
|
Production speed |
Max.30m/min |
|
Structural speed |
50m/min |
|
Sz stranding pitch |
50-800mm(SZ direction) |
|
SZ stranding angle |
4π-24π |
|
Max revolution speed of SZ stranding heads |
MAX. 1800r.p.m |
|
Max revolution speed of cotton wrapping head |
MAX.4000r.p.m |
|
Maximum diameter of the reinforce core |
ø6mm |
|
The reinforce core pay-off reel specification |
PN800-PN1600 |
|
Additional loss |
Maximum 0.02 dB / km (wavelength 1550 nm) average 0.01 dB / km (wavelength 1550 nm) |
4. Main items for Photoelectric Composite Cable SZ Stranding Line:
|
Items |
Qty. |
|
800-1250mm active pay off |
1set |
|
Φ800 tension unit |
1set |
|
Φ800-1200 loose tube Pay-off |
12sets |
|
Steel wire guiding device |
1set |
|
Jelly filling device |
1set |
|
Cable cores collecting device |
1set |
|
SZ oscillator |
1set |
|
Dual wheel concentric cross-binder |
1set |
|
Water blocking tape pay-off(optional) |
1set |
|
Single wheel concentric cross-binder(optional) |
1set |
|
800 double wheel Capstan |
1set |
|
800 tension device |
1set |
|
1400 take up ( ground gantry type option available) |
1set |
|
IPC+PLC program electricity control cabinet |
1set |
